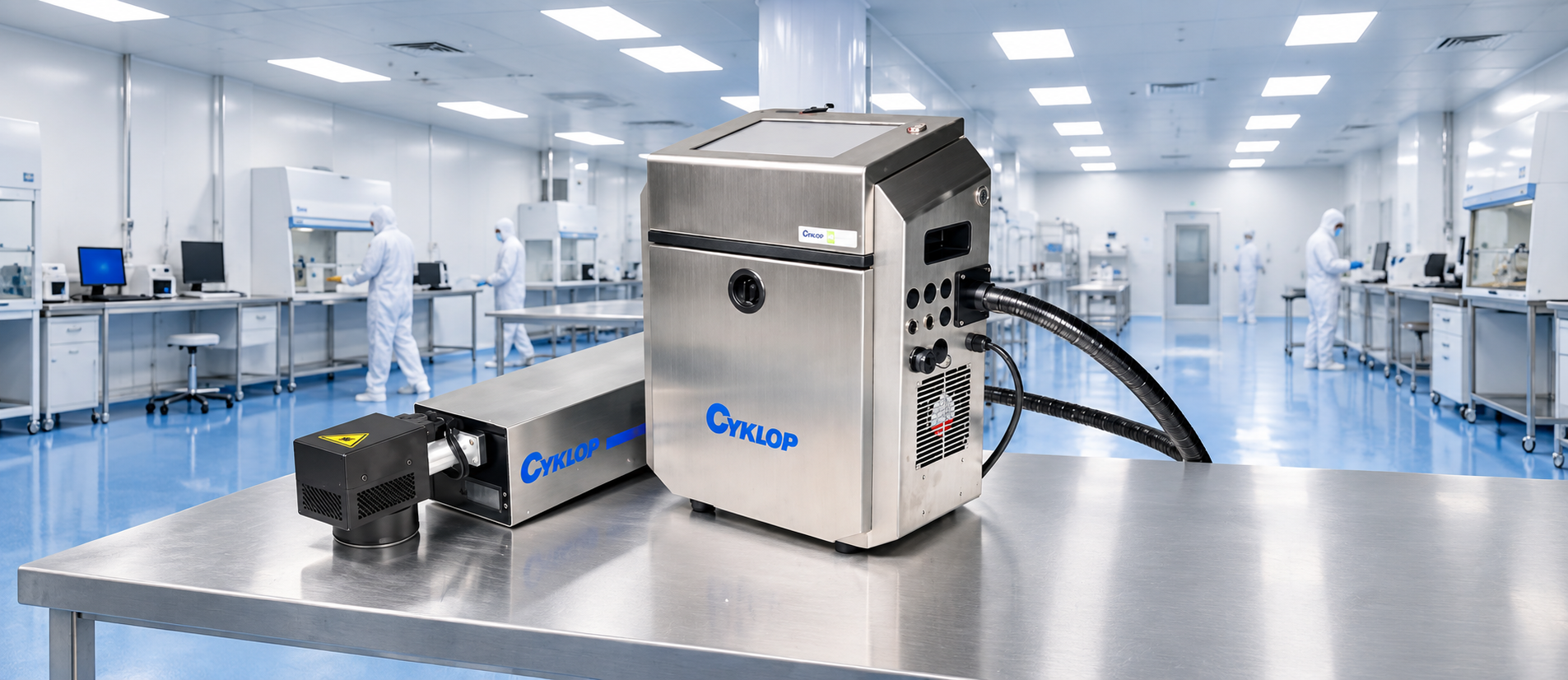

UV Laser Marking System CM 800U
UV LASER MARKING SYSTEM MODEL CM 800U
The CM 800U series UV laser marking system is developed with a 355nm UV laser and is designed for ultra-fine and special material marking applications. Its extremely small focusing spot and minimal processing heat help reduce the impact on material deformation while maintaining high marking quality.
The CM 800U is suitable for applications involving food, tobacco, medicine, electronic components, chemicals, building materials, painted metal surfaces, glass and other special materials where precise and high-quality marking is required.
Precision Marking Without Compromise
Designed around ultra-fine UV laser marking, the CM 800U combines efficient operation, high-speed performance and precise marking control.
Non-stop
No consumables in daily operation and no needs of daily mechanical maintenance procedures will effectively extend the up-time
Air cooled laser source will maximize machine utilization and reduce the unplanned downtime
Easy to operate
Flexible integrated solution with multiple standard beam transmission options
Highly integrated modular design ensures simple and convenient installation and maintenance
Intuitive touch screen interface, easier to edit information, simple to learn, support a variety of communication methods
High efficiency
High-speed digital galvanometer system to ensure high speed and accuracy
Scientific and accurate vector planning logic to reduce marking period
Ultra-high-speed makes up to 150,000 marking per hour
Ultraviolet wave length laser beam makes high speed flying marking on HDPE/LDPE packaging possible
No mistake
"Cold processing" with small focal spot and heat effect ensures the minimization of damage to packaging
Fine and non-erasable marking to help on realization of traceability and anti-counterfeiting in the whole product life cycle
Achievable high-contrast with great visual readability on white HDPE/LDPE packaging

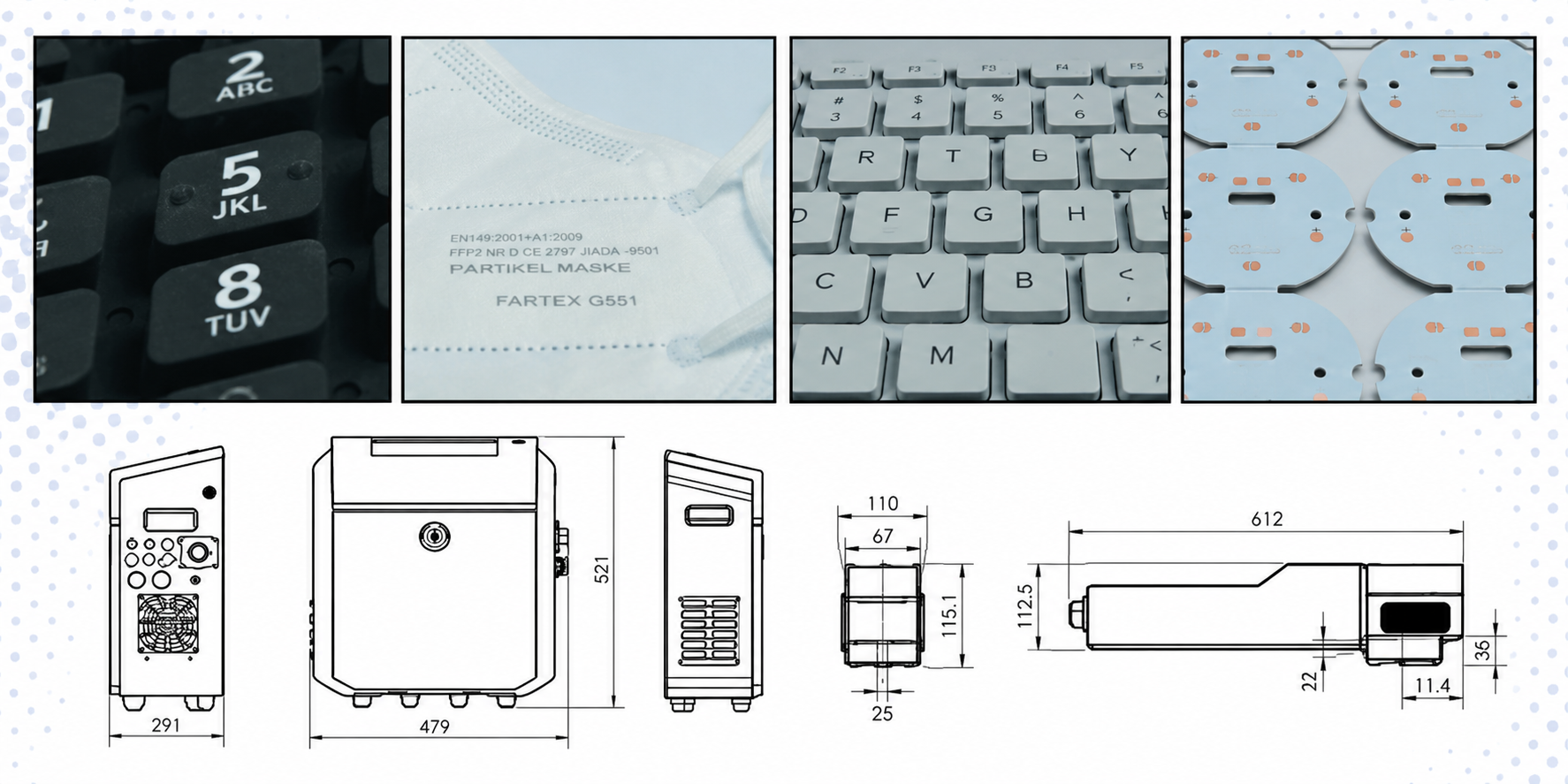

UV Laser Marking Samples & Machine Drawing
Technical Specifications
| Marking speed | Up to 2,000 characters/second |
|---|---|
| Line Speed | Up to 200/min |
| Marking format | Approx. 70x70mm² to 220x220mm² |
| Wave lengths | 355nm |
| Marking format | Standard industrial fonts, Bar codes, Q-R code, Data Matrix, Aztec-code, Han-Xin-code, Graphics, Logos, Symbols etc. |
| Laser tube | Solid-state UV laser |
| User interface | Personalized touch control screen |
| Communication | UDP, TCP/IP and Rs232 |
| Integration | Flexible beam delivery options |
| Electrical requirement | 240 VAC (To be noted when ordering), ~50/60 Hz, 1 PH, 0.70 KW/1.50 KW |
| Environment | Temperature 5-40°C (41-104°F), Humidity 10%-90%, no condensing |
| Sealing and safety standards | Cabinet: IP54 standard, Marking Unit: IP54 standard |
| Weight | Standard unit: approx. 28 kg |
