Thermal Inkjet Printer CM 600

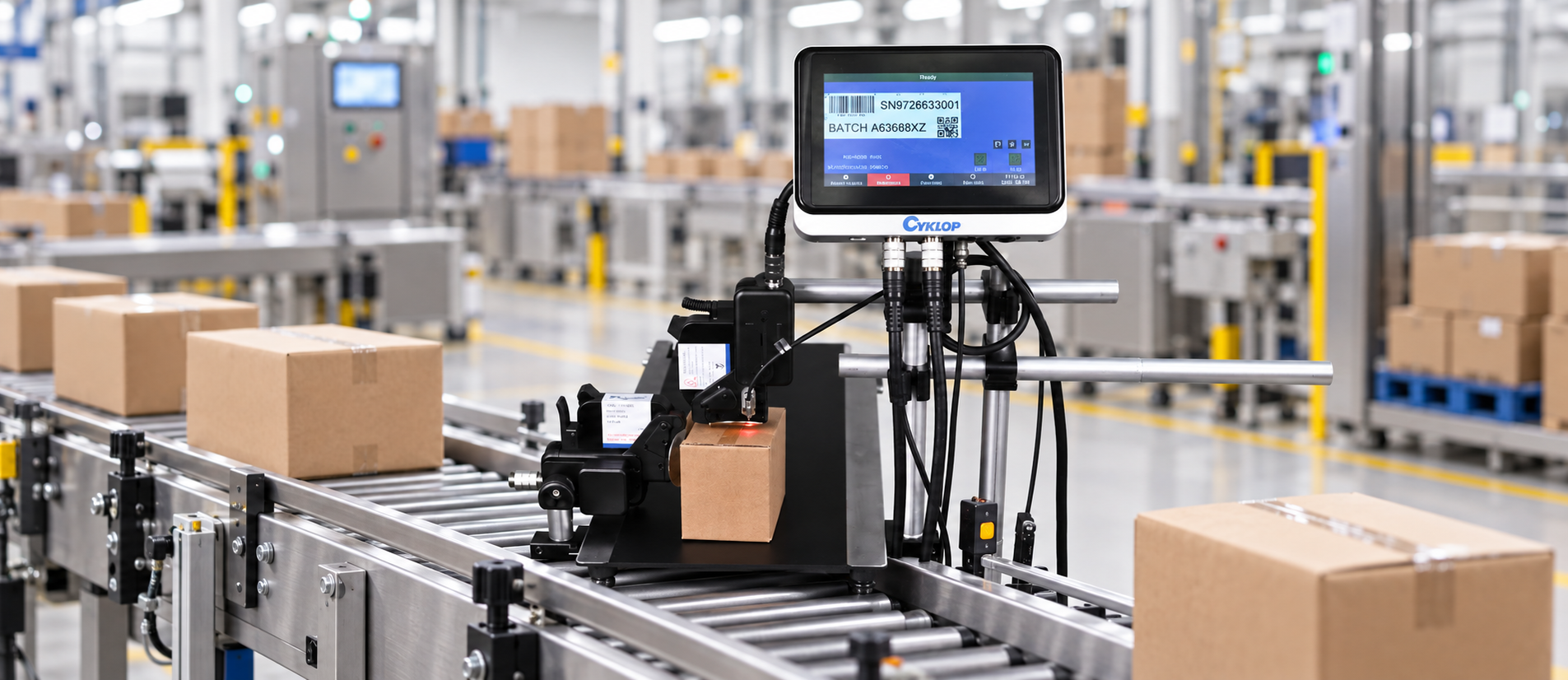

THERMAL INKJET PRINTER – MODEL CM 600
The CM 600 is a Thermal Inkjet Printer designed for high-speed industrial coding and marking applications. It features a user-friendly 7-inch touchscreen interface for convenient operation and efficient print data management.
The system is suitable for printing production information such as date, time, counters, graphics and logos on different products and packaging materials. Its high-speed coding capability makes it suitable for food, beverage, cosmetic, pharmaceutical and extrusion applications.
Built for Reliable Performance
The CM 600 combines efficient operation, high-speed performance and precise control for industrial coding and marking requirements.
Non-stop
High performance long-life laser source increases uptime significantly
Air-cooled laser source and no wearing parts requires no additional maintenance
Easy to operate
Flexible integrated solution with multiple standard beam transmission options
Highly integrated modular design ensures simple and convenient installation and maintenance
High efficiency
High-speed digital galvanometer system to ensure high speed and accuracy
Smaller spot size and concentrated energy to handle difficult materials and complex marking requirements
Optimized vector calculation logic for more precise and efficient control of lines
No mistake
In-house developed touch screen high-speed laser printer control system
Human-machine interaction, reducing mis-operations and ensuring correct marking
Multiple high-resolution print field lens options provide accurate and perfect identification

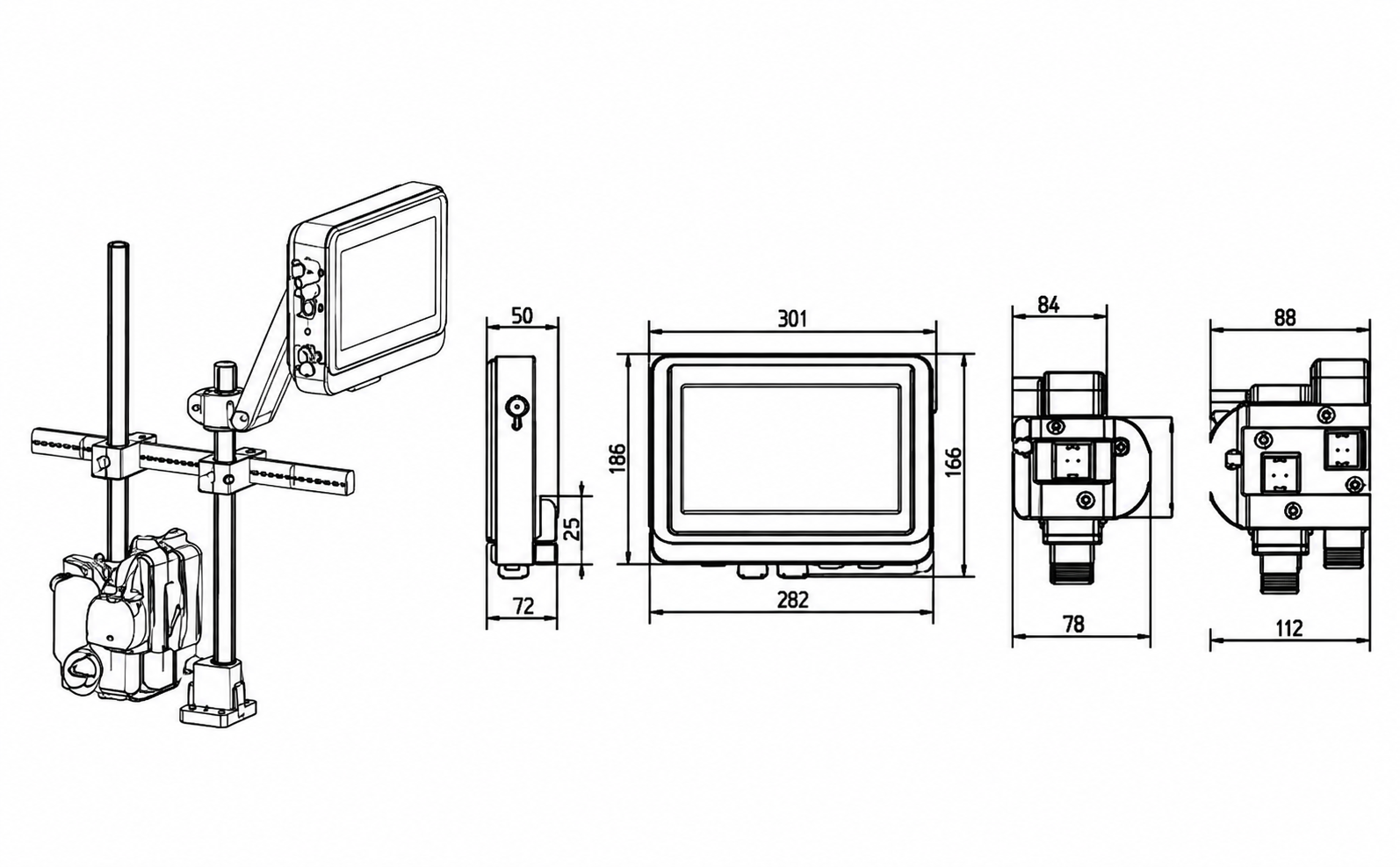

Thermal Inkjet Printer Samples & Machine Drawing
.png)
Technical Specifications
| Print technology | HP TIJ 2.5 |
|---|---|
| Print parameters | Selectable 150, 200, 300, 600 dpi |
| Print head mounting | Auto head, 10mm anti shock with 30 deg incremental quick rotational print head mounting. Side on and top down printing. |
| Print distance | 1mm optimal, 5mm maximal |
| Printing speed | Up to 228 m/min, 76 m/min at 300dpi |
| Print Colors | Black water based, Black, Red and Blue solvent based |
| Printing options | Configurable timed/date codes, counters, shift code, graphics / Logo, external data, symbol sets |
| Sensor | External fiber optic sensor with head mounting bracket |
| Languages | English, German |
| Power supply | AC 100-240V, 50/60Hz, 60W, 12 VDC, 5A |
| IP Rating | IP54 Controller |
Thermal Inkjet Printer Machine Samples & Technical Drawing
Technical Specifications
| Screen | 10" TFT LCD Touchscreen |
|---|---|
| Printhead | Temperature control printhead, Diameter 41mm |
| Umbilical | Length 2700mm, Bending radius150mm |
| Nozzle diameter | 60/70um |
| Electricity | 200-240VAC, 50Hz, Rated power: 70w |
| Operating temperature | 5-45°C |
| Protection level | IP 55 |
| User interface | WYSIWYG system, Touchscreen |
| User field | QR Code, Barcode, shift, graphics |
| Print height | 1.2-10mm, 1-5 lines, max. 34 dot |
| Contact-free print distance | 2-15mm, Up to 50mm with print option |
| Fastest print speed | 320m/min 60um model |
