CST 205

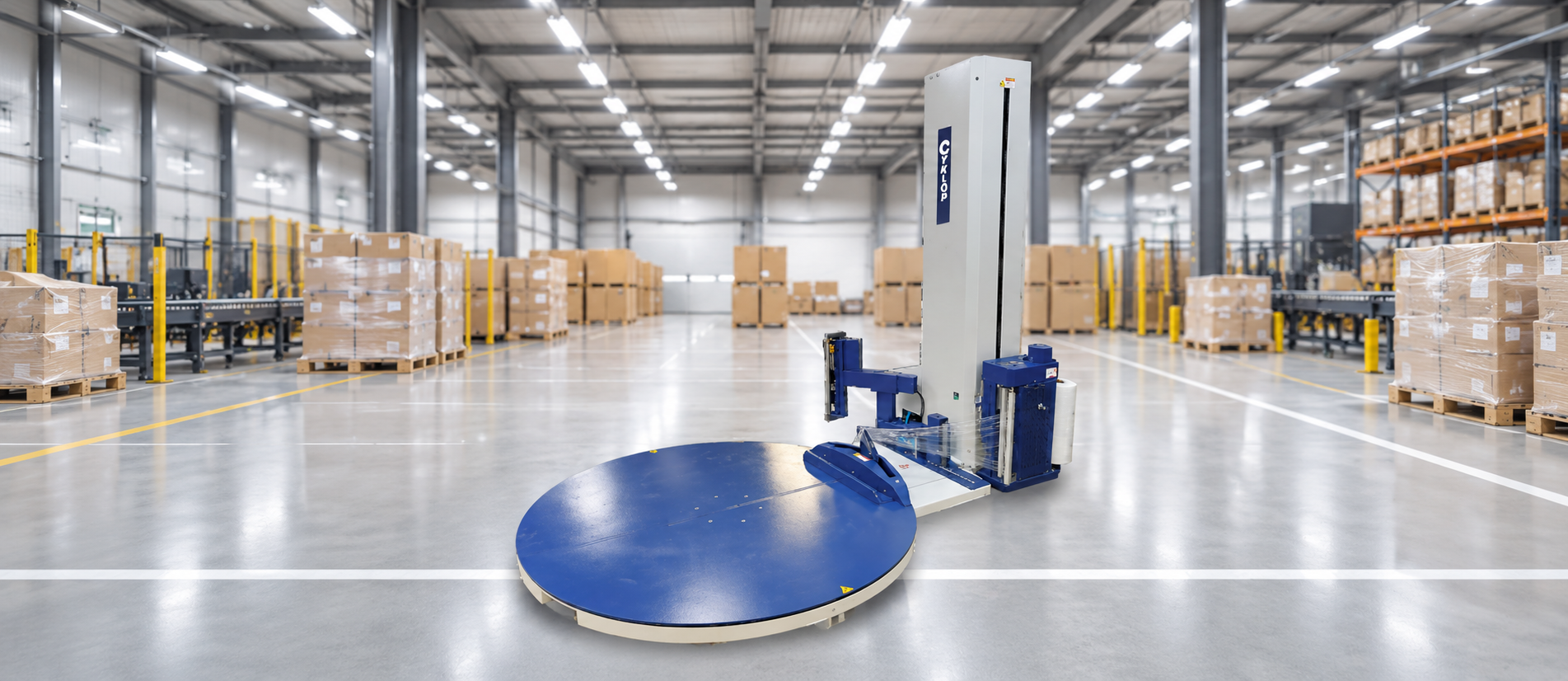

Stretch Wrapper CST 205 Auto
STRETCH WRAPPER CST 205 AUTO
The CST 205 is a turntable stretch wrapper designed to wrap irregularly shaped products with ease. It provides a practical and efficient solution for industrial pallet wrapping applications.
Products can be loaded onto the wrapping machine using a forklift or pallet truck. The wrapper can be operated through a touchscreen or remote control, while the user-friendly interface makes changes to wrapping programs and parameter settings convenient.
Technical Data
| Machine | |
|---|---|
| Table diam | 1650 mm |
| Speed | 12 rpm |
| Capacity | 10-25 pallets/hour (base on pallet height & turns to be wrapped) |
| Start / stop | Frequency controlled |
| Bottom / top wrap | 1-9 |
| Film carriage speed | Variable speed |
| Pre-stretch ratio | 250% and 200% manually, two-section variable (300% and 230% optional) |
| Stretch wrapping program | 8 adjustable |
| Controller | PLC |
| Power | |
| Supply | Single phase 240V 50 Hz |
| Loading | 10 A |
| Pallet Goods | |
| Max size (length x width) | 1200 x 1000 mm |
| Max. goods height incl. pallet | 2000 mm |
| Permitted load weight | 2000 kg |
| Stretch Film | |
| Core diameter | 76 mm |
| Outer diameter, max | 250 mm |
| Film width, max | 500 mm |
| Film thickness | 9-35 my |
