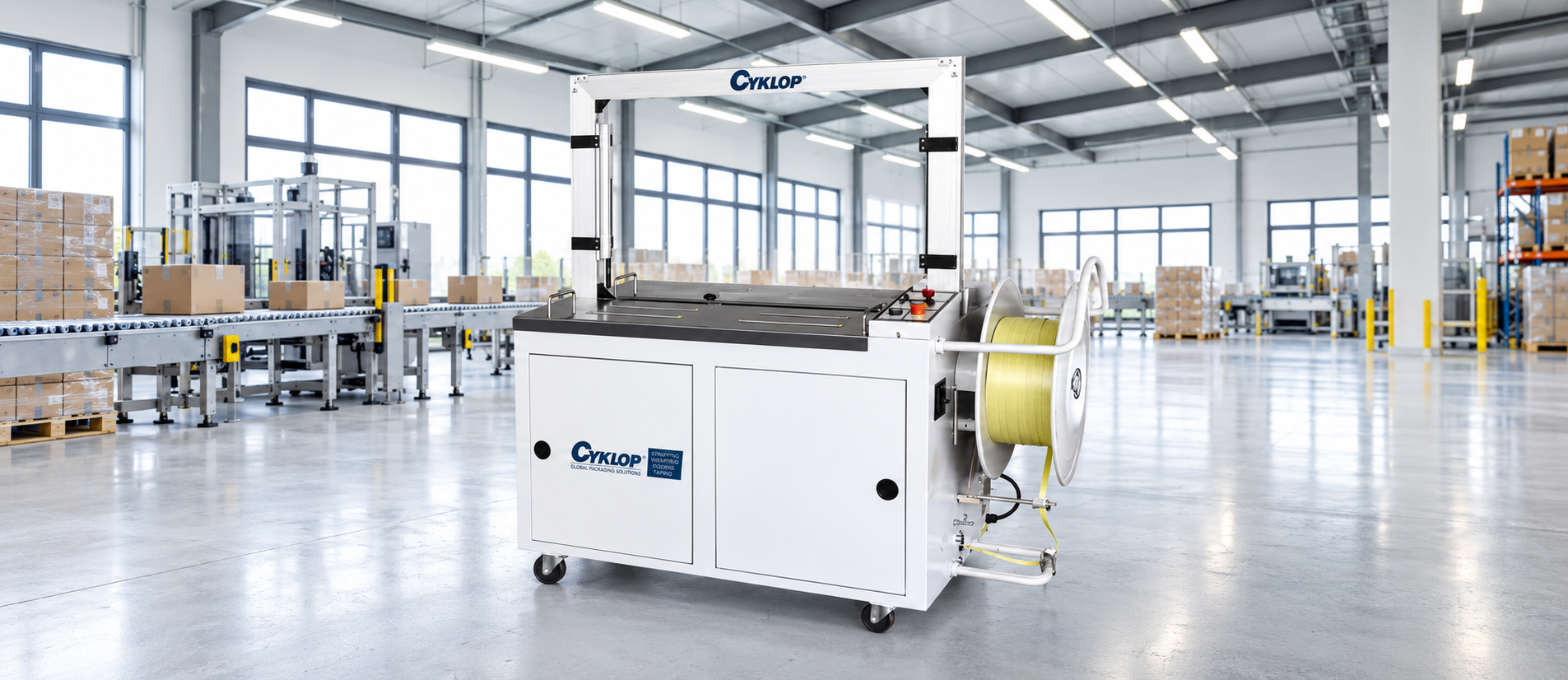

STRAPPING MACHINE – CP 19CA
The automatic CP 19CA Strapping Machine is designed for efficient strapping of various packages and boxes. It supports PP strap sizes from 9 to 19 mm and features a simple control panel for convenient operation.
With a strapping capacity of up to 30–32 straps per minute, depending on tension, package size and arch size, the CP 19CA provides a practical solution for automatic packaging and reliable package securing.
PRODUCT REFERENCE

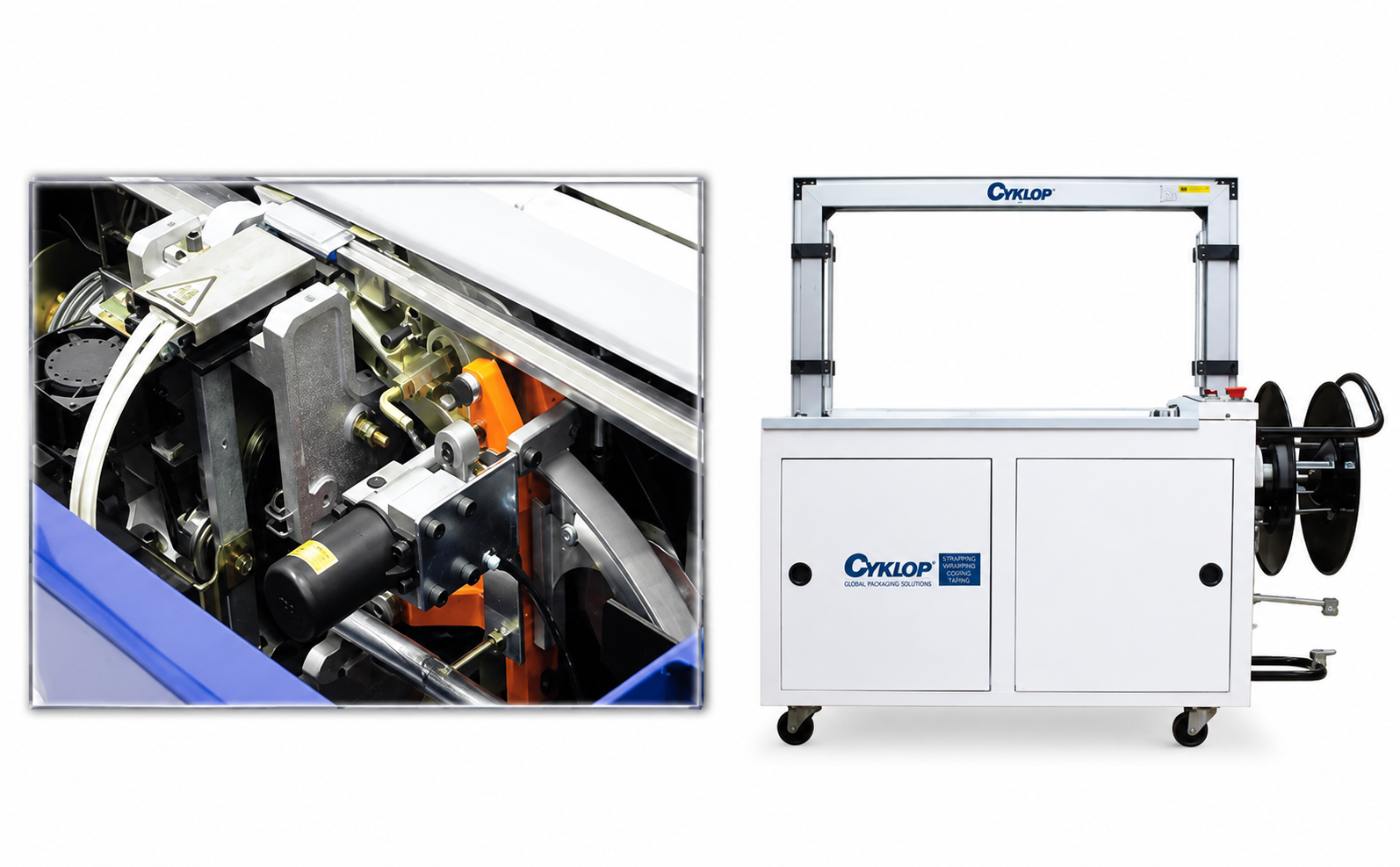

Strapping Machine CP 19CA Samples & Machine Drawing
Technical Specifications
| Min. package size | 200 x 750 x 500 mm (LxWxH) |
|---|---|
| Strapping material |
Polystrap 9, 10, 11, 12, 13, 15, 19 mm Thickness 0.6 - 1.0 mm |
| Strap coil |
Core diameter 200 mm Outer diameter 400 mm Width 180 mm |
| Strap tension | 70 - 882 ~ 90 Kgs |
| Packing Type | Parallel Strapping, Continuous Mode Manual Operation, Ball Switch |
| Sealing method | Hotseal |
| Noise | <75 dB(A) |
| Warm up time | Approximately 1 min |
| Power | 380V, 50/60 Hz 1.0kW 10A 3P |
| Machine weight | Approximately 220 kg |
| Machine Dimensions | L1380 x W820 x H1540 mm |
| Operating temperature | 5 - 40 °C |
MACHINE DETAILS
Strapping Machine CP 19CA Technical View & Reference
Technical Data
| Dimensions of machine (LxWxH) | 1090 x 890 x 750 mm |
|---|---|
| Sealing | Bottom and top |
| Consumables | PP/PVC Tape |
| Tape outer roll diameter | 350 mm (max) |
| Tape core diameter | 76 mm |
| Tape width | 50–75 mm |
| Pack size – length | min 150 mm max |
| Pack size – width | 120 mm – 480 mm |
| Pack size – height | 120 mm – 480 mm |
| Capacity | 1200 packages / hour |
| Transport | Side 20 meters / hour |
| Protection | IP 55 |
| Power | 220 V / 50 Hz / 1 phase |
| Weight | 200 Kg |
