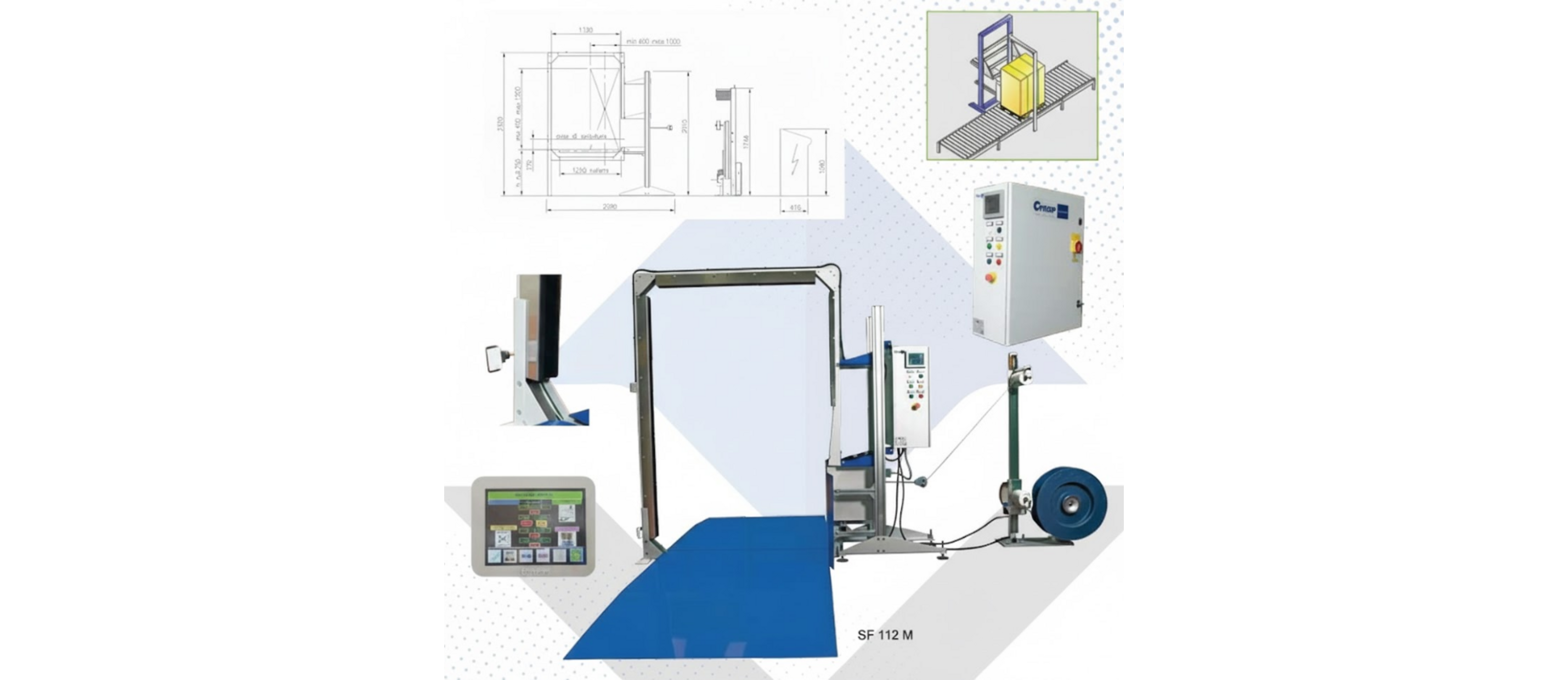

SF/SP 112 M
Vertical Strapping Machine Head on Side
SF/SP 112 M VERTICAL STRAPPING MACHINE – HEAD ON SIDE
The SF/SP 112 M is a fully automatic vertical strapping machine designed for automatic positioning of PP or PET strap around packages and pallets. Its side-mounted strapping head allows efficient vertical strapping for different packaging requirements.
The machine is designed for reliable integration into automated packaging lines and can perform one or more vertical straps. It combines a fixed side strapping head with Siemens PLC-based control for convenient and consistent operation.
Technical Features Caratteristiche Tecniche :
|
Strapping Reggettatura |
Vertical Verticale |
|---|---|
|
Head testa |
Fixed, side Fissa laterale |
|
Package dimensions dimensioni pacco |
Mm. 800 – 1200 (W) Mm. 450 – 2100 (H) |
|
Tension tensione |
Up to 5500 n (cfr1) Up to 2200n (cfr2) |
|
Electrical cabinet pulpito |
With PLC S7/300 proface |
|
Strap type reggetta |
PP, PET |
|
Alimentation Alimentazione |
400 V + 3f + n + - 50 Hz 24 V DC 2,5 KW ± |
Basic Machine & Options
|
SF-112-M SP-112-M Strap-Lance speed 700mm/s Velocità Lancia 700mm/s |
F=
P= |
For package, closed arch Per pacchi, arco chiuso For pallets, with lance Per pallet, con lancia |
|---|---|---|
| SF / SP-112-MV | V = |
Movable head, 500mm Testa mobile, avanzamento 500mm |
| SF / SP-112-MVB | B = |
Floating head Testa flottante |
|
Pneumatic strap guide for strap perpendicular to package
Dispositivo pneumatico per una reggetta perfettamente perpendicolare al pacco |
For package dimensions over:
Per pacchi di dimensioni superiori a: W 1000 H 450/1.500 |
|
|
Light press (column type, motorized with inverter)
Pressa Leggera |
Max force 500 kg | |
|
Flap opener
Canaline |
Only with selected option light press
Solo con opzione pressa leggera |
|
|
Bigger arch for bigger packages
Arco per pacchi di grandi dimensioni |
Package with height over 2.100mm
Per pacchi di altezza superiore a 2.100 mm |
