SF 172 M

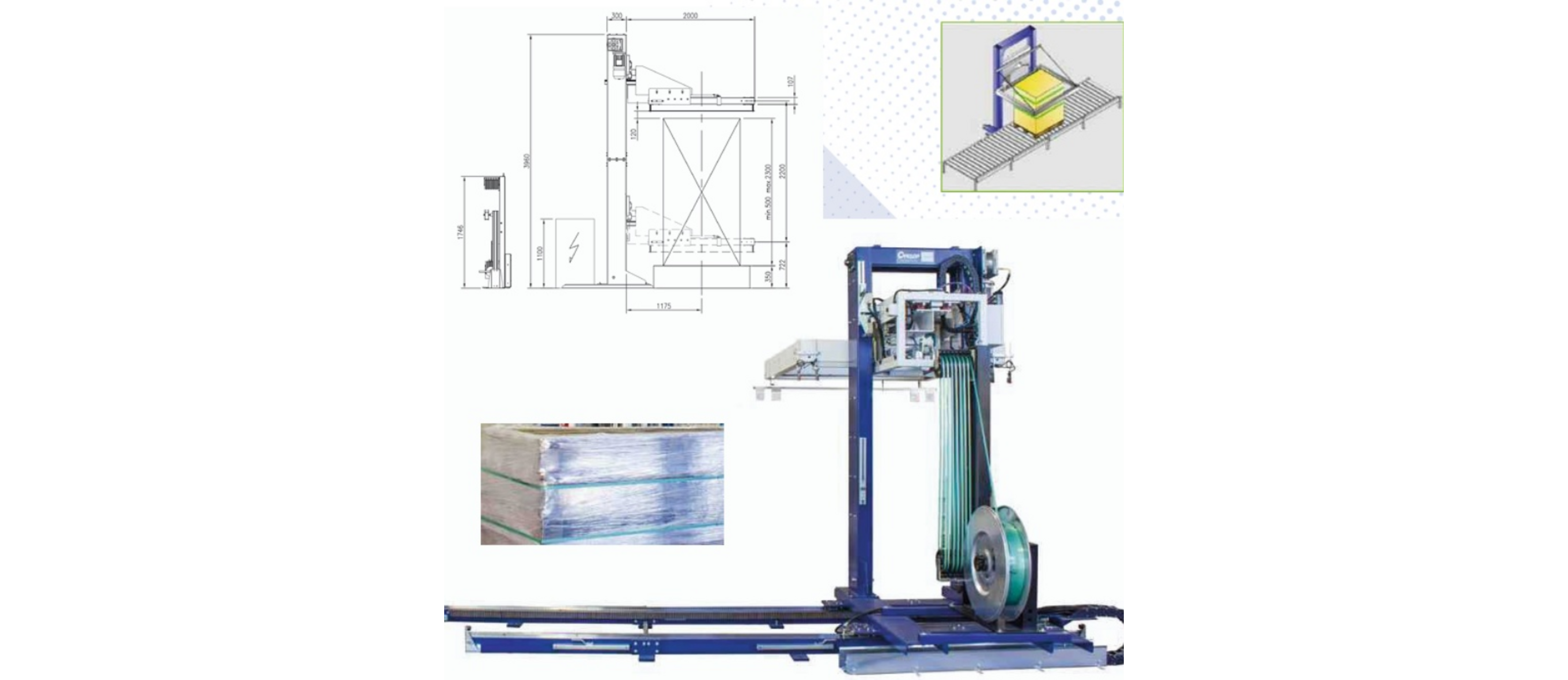

SF 172 M Horizontal Strapping Machine
SF 172 M HORIZONTAL STRAPPING MACHINE
The SF 172 M is a fully automatic horizontal strapping machine designed for automatic positioning of PP or PET strap around packages and pallets. It can perform one or more horizontal strapping cycles according to the packaging requirements.
The machine combines a robust strapping structure, strap guiding system, electrical control cabinet and strap dispenser for reliable integration into automated packaging lines. Its Siemens PLC-based control system supports convenient and consistent operation in demanding production environments.
Technical Features Caratteristiche Tecniche :
|
Strapping Reggettatura |
Horizontal Orizzontale |
|---|---|
|
Head testa |
Fixed, side Fissa laterale |
|
Package dimensions dimensioni pacco |
mm. 1200 (L) mm. 800 (W) mm. 2300 (H) |
|
Tension tensione |
Up to 5500 n (cfr1) Up to 2200n (cfr2) |
|
Electrical cabinet pulpito |
With PLC S7/300 proface |
|
Strap type reggetta |
PP, PET |
|
Alimentation Alimentazione |
400 V + 3f + n + - 50 Hz 24 V DC 2,5 KW ± |
|
Carriage Speed Velocità carrello |
170 mm/sec. |
Basic Machine & Options
| SF 172 MV | V = |
Moveable head, 500mm Testa mobile, avanzamento 500mm |
|---|---|---|
| SF 172 MVC | C = |
Pneumatic strap guide Guida reggiatura pneumatica |
| SF 172 MVB | B = |
Floating head Testa flottante |
| SF 172 MVB C |
B = C = |
Floating head Testa flottante Pneumatic strap guide Guida reggiatura pneumatica |
| SF 172 MV S | S = |
Compactor system 4 sides (pneumatic) Dispositivo di compressione pneumatic sui 4 lati |
| SFV 172 M | V = |
Moveable machine on rails Macchina mobile su binari |
|
Bigger arch for bigger packages Arco per pacchi di grandi dimensioni |
Package over: Pacchi oltre: mm. 1800 (L) × 1000 (W) × 2300 (H) |
