SF 113 M
Vertical Strapping Machine Head Under

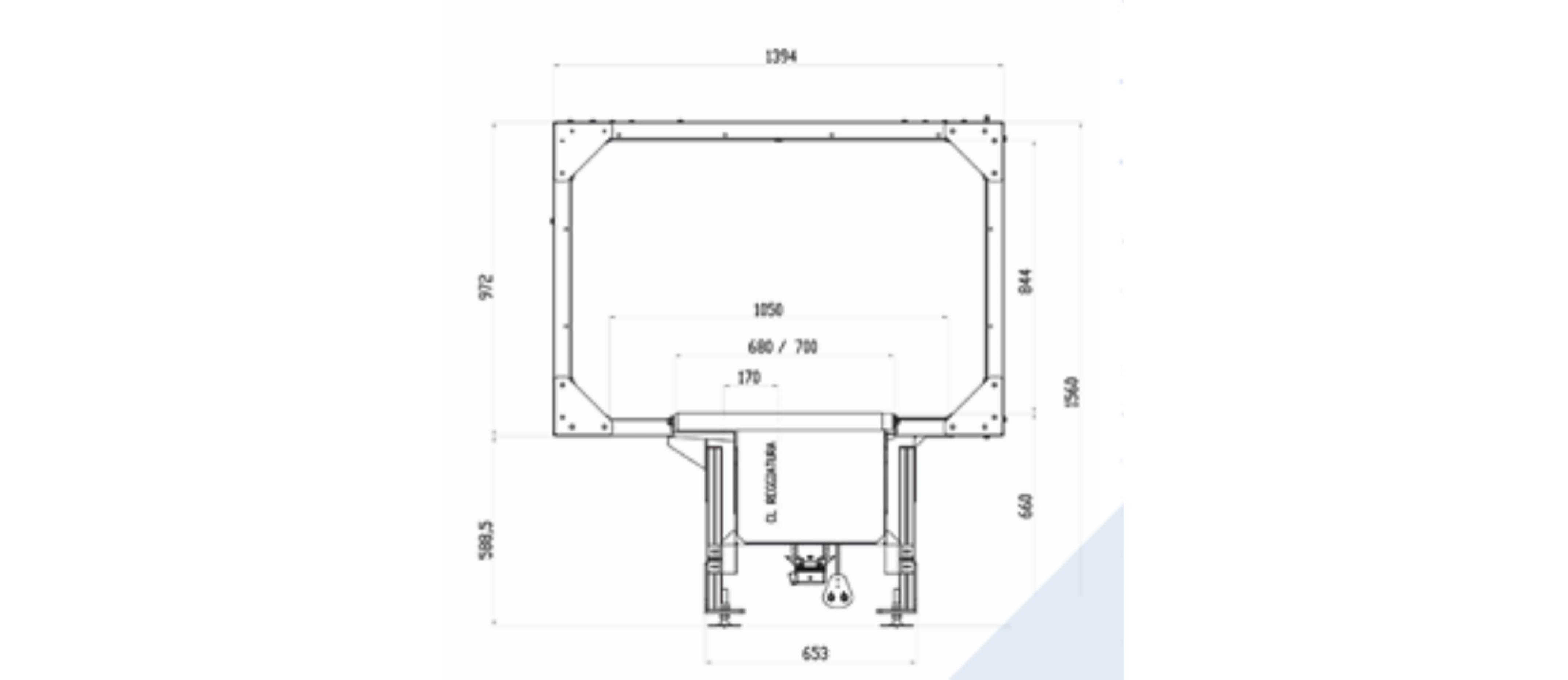

SF 113 M VERTICAL STRAPPING MACHINE – HEAD UNDER
The SF 113 M is an automatic vertical strapping machine designed for securing packages and pallets with vertical PP or PET straps. Its fixed strapping head is positioned under the package, allowing the strap to be sealed at the bottom.
The machine combines a strap-guiding arch, strapping head, electrical cabinet with Siemens PLC and strap dispenser for reliable automatic operation. It is designed for efficient vertical strapping in automated packaging processes.
Technical Features Caratteristiche Tecniche :
|
STRAPPING REGGIATURA |
Vertical Verticale |
|---|---|
|
HEAD TESTA |
Fixed, under Fissa sotto |
|
PACKAGE DIMENSIONS DIMENSIONI-PACCO |
mm. 80-470 (W) mm. 30-500 (H) |
|
WORKING HEIGHT ALTEZZA PIANO LAVORO |
760 - 820 mm |
|
TENSION TENSIONE |
Up to 5500 N (CFH1) Up to 2200N (CF L2) |
|
ELECTRICAL CABINET PULPITO |
With PLC S7/300 proface |
|
STRAP TYPE REGGETTA |
PP, PET |
|
ALIMENTATION ALIMENTAZIONE |
400 V + 3F + N + T - 50 Hz 24 V DC 2 KW ± |
| Options |
Bigger arch for bigger packages, Light press, Flap opener,
Compactor, Transit Version
Opzioni: Arco per pacchi di grandi dimensioni, Pressa leggera, Canaline, Compattatori, Versione Transit |
