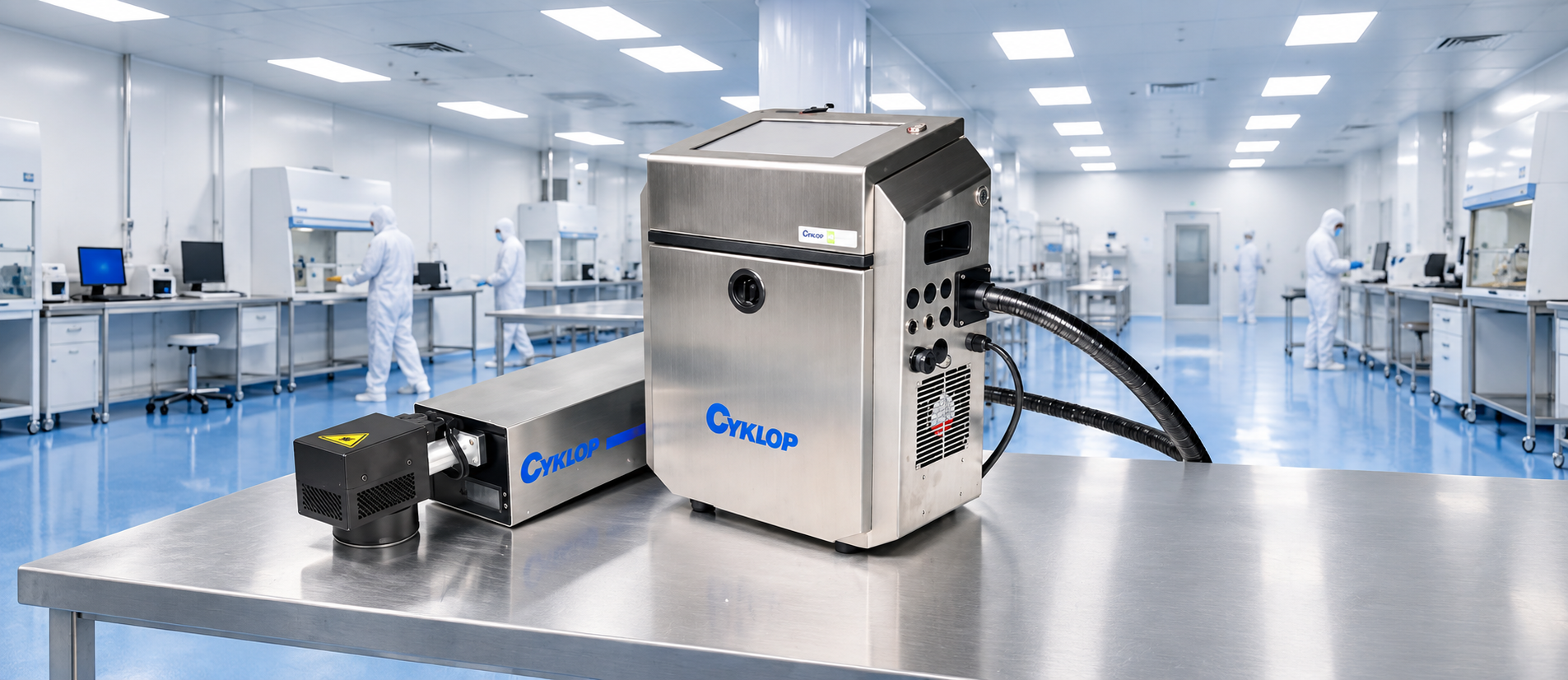

UV LASER MARKING SYSTEM MODEL CM 800U

Home UV LASER MARKING SYSTEM MODEL CM 800U

UV LASER MARKING SYSTEM MODEL CM 800U

MORE THAN A CENTURY OF GLOBAL MARKING, CODING & PACKAGING SOLUTIONS

UV LASER PRINTER

CM 800U series UV-laser marking system has extremely small focusing spot and minimal processing heat and impact on material. A laser from the CM 800 series is the first choice for customers with high demands on marking quality.

✓ For ultra fine marking needs like special material marking, such as food, tobacco, medicine, electronic components, chemicals, building materials, painted metal surface, glass and many other applications.

✓ Easy to operate

UV LASER MARKING SYSTEM THE CM800U SERIES

CM 800U series UV laser is developed with 355nm UV laser, which is especially suitable for ultra-fine marking, special material marking, such as food, tobacco, medicine, electronic components, chemicals, building materials, painted metal surface, glass and other applications due to its extremely small focusing spot and minimal processing heat and impact on the deformation of the material. It is the first choice for customers with high standard of marking quality.

Non-stop

  • No consumables in daily operation and no needs of daily mechanical maintenance procedures will effectively extend the up-time
  • Air cooled laser source will maximize machine utilization and reduce the unplanned downtime

Easy to operate

  • Flexible integrated solution with multiple standard beam transmission options
  • Highly integrated modular design ensures simple and convenient installation and maintenance
  • Intuitive touch screen interface, easier to edit information, simple to learn, support a variety of communication methods

High efficiency

  • High-speed digital galvanometer system to ensure high speed and accuracy
  • Scientific and accurate vector planning logic to reduce marking period
  • Ultra-high-speed makes up to 150,000 marking per hour
  • Ultraviolet wave length laser beam makes high speed flying marking on HDPE/LDPE packaging possible

No mistake

  • "Cold processing" with small focal spot and heat effect ensures the minimization of damage to packaging
  • Fine and non-erasable marking to help on realization of traceability and anti-counterfeiting in the whole product life cycle
  • Achievable high-contrast with great visual readability on white HDPE/LDPE packaging

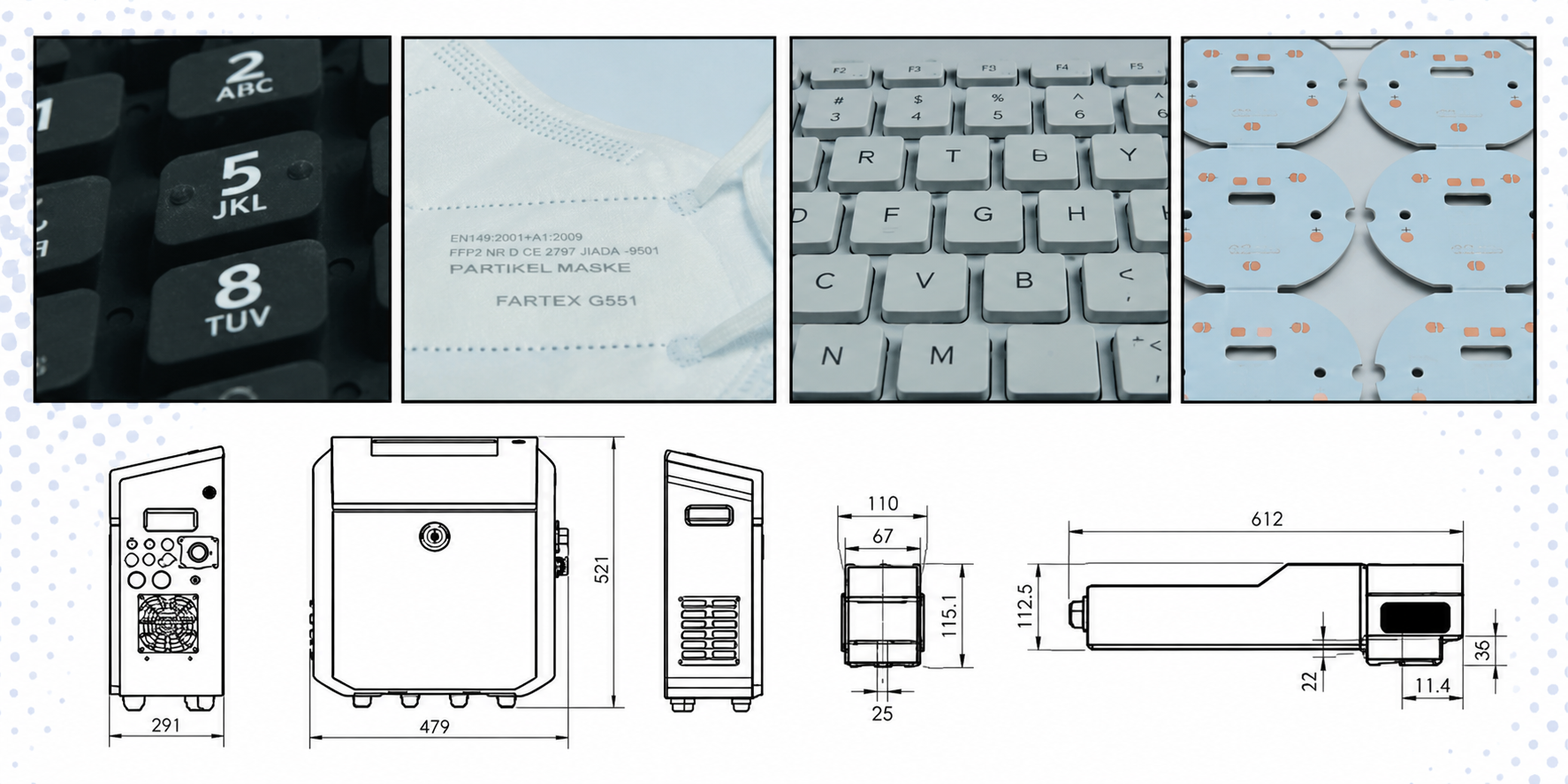

Fiber laser marking samples and machine drawing
TECHNICAL SPECIFICATIONS
Marking speed Up to 2,000 characters/second
Line Speed Up to 200/min
Marking format Approx. 70x70mm² to 220x220mm²
Wave lengths 355nm
Marking format Standard industrial fonts, Bar codes, Q-R code, Data Matrix, Aztec -code, Han-Xin-code, Graphics, Logos, Symbols etc.
Laser tube Solid-state UV laser
User interface Personalized touch control screen
Communication UDP, TCP/IP and Rs232
Integration Flexible beam delivery options
Electrical requirement 240 VAC (To be noted when ordering), ~50/60 Hz, 1 PH, 0.70 KW/1.50 KW
Environment Temperature 5-40°C (41-104°F) Humidity 10%-90%, no condensing
Sealing and safety standards Cabinet: IP54 standard, Marking Unit: Ip54 standard
Weight Standard unit: approx. 28 kg










CO2 LASER MARKING SYSTEM THE CM800C SERIES

CM 800C series CO2 laser marking system help customers achieve high-quality and high-speed printing in various production situations. The printing content is flexible, not restricted by fonts, coding or graphics. It is an ideal solution for high-speed and complex coding request in food, beverage, cosmetic, pharmaceutical and extrusion industries.

Non-stop

  • Optimized total output power for a laser source life of up to 40,000 hours
  • Air-cooled laser source requires no additional maintenance
  • Totally sealed maintenance-free optical system, no adjustment

Easy to operate

  • Flexible integrated solution with multiple standard beam transmission options
  • Highly integrated modular design ensures simple and convenient installation and maintenance

High efficiency

  • High-speed digital galvanometer system to ensure high speed and accuracy
  • Scientific and accurate vector planning logic, reducing the time consumed for a single marking
  • Ultra-high-speed

No mistake

  • In-house developed touch screen high-speed laser printer control system
  • Human-machine interaction, reducing mis-operations and ensuring correct marking
  • Multiple high-resolution print field lens options provide accurate and perfect identification
CO2 laser marking samples
TECHNICAL SPECIFICATIONS
Marking speed Up to 2,000 characters/second
Line Speed Up to 200/min
Marking format Approx. 50x50mm² to 400x400mm²
Wave lengths 10.6um, 10.2um and 9.3um
Marking format Standard industrial fonts, Bar codes, Q-R code, Data Matrix, Aztec-code, Han-Xin-code, Graphics, Logos, Symbols etc.
Laser tube Sealed CO2 laser
User interface Personalized touch control screen
Communication UDP, TCP/IP and Rs232
Integration Flexible beam delivery options
Electrical requirement 240 VAC (To be noted when ordering), ~50/60 Hz, 1 PH, 0.70 KW / 2 PH 1.50 KW
Sealing and safety standards Cabinet: IP54 standard, Marking Unit: IP54 standard
Weight Standard unit: approx. 34 kg, 39 kg (60W)
