CI 1110-M Detailed Introduction
During pallet transportation, covering goods with film provides additional dust and moisture protection. Cyklop’s top sheet sealer can be easily integrated into existing conveyor systems with different heights.

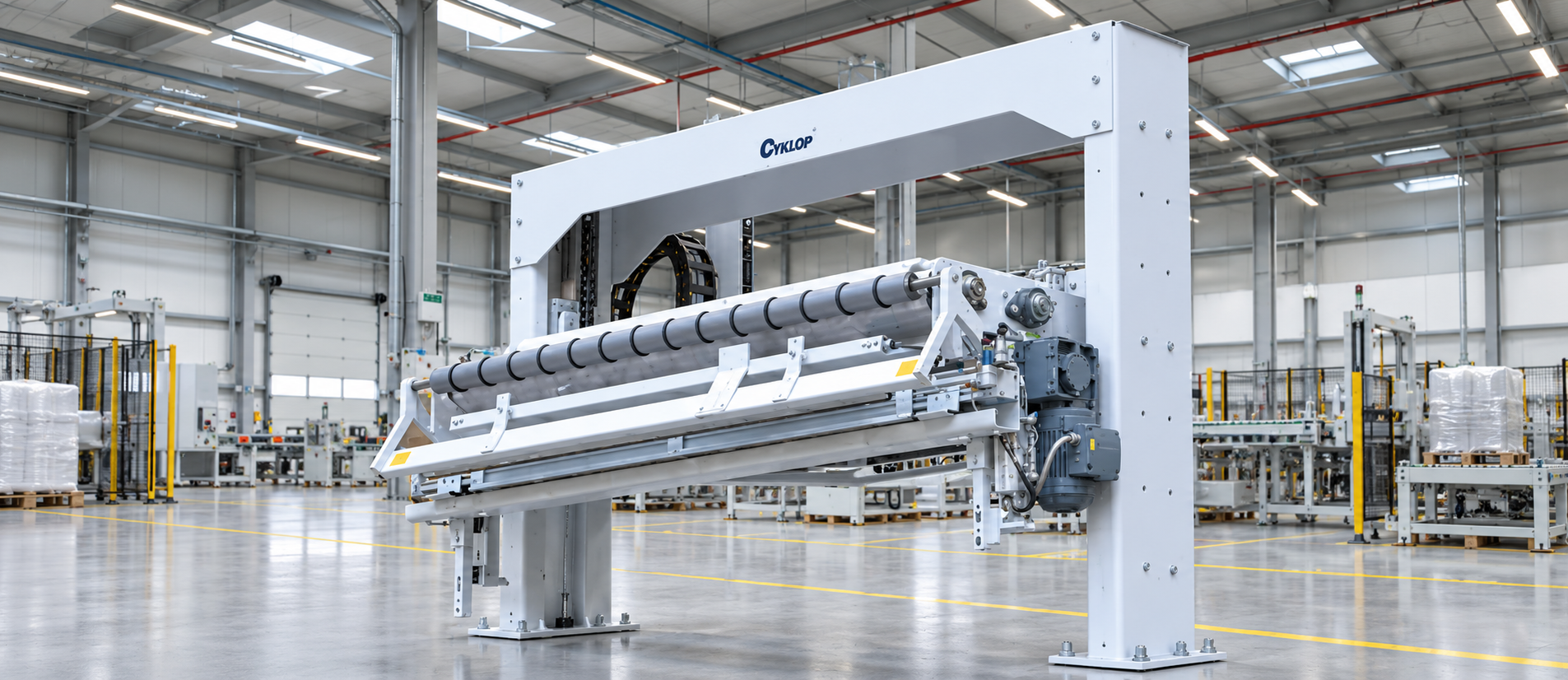

TOP SHEET DISPENSER
Technical features
| Film width | Max 2,000 mm |
| Film thickness | 50 - 180 µm |
| Pass-through | 1,800 mm (standard) |
Characteristics
- Ionizing bar is optional
- Variable machine aperture
- Separate control cabinet including control
- Online continuous cutting film
- Mesh film or foam film
- Encoder customizes the cutting length arbitrarily.
- Logo / barcode / QR code printing
ITF Top Film Dispenser – Detailed Introduction
The ITF system is integrated into the machine for dust-proof and rainproof wrapping.
| Technical features | |
|---|---|
| Film thickness | 60–90 µm |
| Film quality | LDPE |
| Sleeve inner diameter | 76 mm |
TSD Top Sheet Dispenser – Detailed Introduction
The TSD system is located in the inlet area of the machine for dust-tight wrapping.
- Height detection with light barrier
- The film is separated using a knife
- The film roll drive is frequency-controlled
