THERMAL INKJET PRINTER MODEL CM 600

Home THERMAL INKJET PRINTER MODEL CM 600

THERMAL INKJET PRINTER MODEL CM 600

MORE THAN A CENTURY OF GLOBAL MARKING, CODING & PACKAGING SOLUTIONS

THERMAL INKJET PRINTER

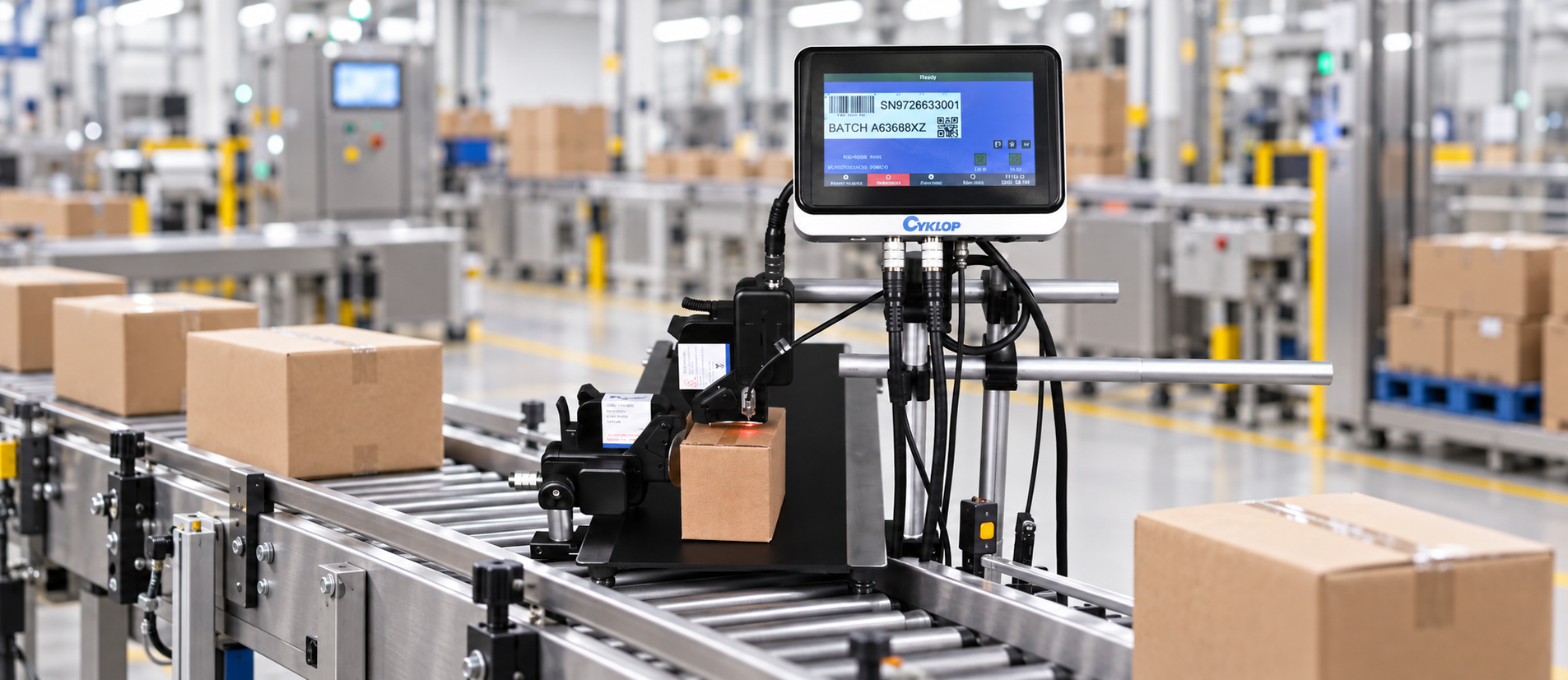

The thermal inkjet printer Cyklop CM 600 is operated and programmed via a high-resolution touchscreen with a 7" screen diagonal. The screen is designed according to the "less is more" principle and enables important information such as printer status, print image and fill level to be quickly identified at a glance. Up to 2 smart printheads with innovative quick and secure head angle adjustment. Anti shock bracket and automatic "stay sharp" cartridge print management.

✓ High speed printing for high-speed and complex coding request in food, beverage, cosmetic, pharmaceutical and extrusion industries.

✓ High efficiency                     ✓ Innovative

✓ Easy to operate                     ✓ Easy cartridge replacement

THERMAL INKJET PRINTER THE CM 600 SERIES

Non-stop
High performance long-life laser source increases uptime significantly
Air-cooled laser source and no wearing parts requires no additional maintenance
Easy to operate
Flexible integrated solution with multiple standard beam transmission options
Highly integrated modular design ensures simple and convenient installation and maintenance
High efficiency
High-speed digital galvanometer system to ensure high speed and accuracy
Smaller spot size and concentrated energy to handle difficult materials and complex marking requirements
Optimized vector calculation logic for more precise and efficient control of lines
No mistake
In-house developed touch screen high-speed laser printer control system
Human-machine interaction, reducing mis-operations and ensuring correct marking
Multiple high-resolution print field lens options provide accurate and perfect identification
Low cost
The cartridge concept enables low operating costs without maintenance or repairs and enables smooth operation with high availability at minimal costs.
  • 7" color touch screen
  • Data printing
  • Automatic "stay sharp"
  • Ethernet / USB / RS232
  • Cartridge print management
  • Fiber optic product sensor
  • Innovative head angle adjustment
  • Anti shock bracket
CO2 laser marking samples
TECHNICAL SPECIFICATIONS
Print technology HP TIJ 2.5
Print parameters Selectable 150, 200, 300, 600 dpi
Print head mounting Auto head, 10mm anti shock with 30 deg incremental quick rotational print head mounting. Side on and top down printing.
Print distance 1mm optimal, 5mm maximal
Printing speed Up to 228 m/min, 76 m/min at 300dpi
Print Colors Black water based, Black, Red and Blue solvent based
Printing options Configurable time/date codes, counters, shift code, graphics / Logo, external data, symbol sets
Sensor External fiber optic sensor with head mounting bracket
Languages English, Germany
Power supply AC 100-240V, 50/60Hz, 60W, 12 VDC, 5 A
IP Rating IP54 Controller
CO2 laser marking samples
TECHNICAL SPECIFICATIONS
Screen 10" TFT LCD Touchscreen
Printhead Temperature control printhead, Diameter 41mm
Umbilical Length 2700mm, Bending radius150mm
Nozzle diameter 60/70um
Electricity 200-240VAC, 50Hz, Rated power: 70w
Operating temperature 5-45°C
Protection level IP 55
User interface WYSIWYG system, Touchscreen
User field QR Code, Barcode, shift, graphics
Print height 1.2-10mm, 1-5 lines, max. 34 dot
Contact-free print distance 2-15mm, Up to 50mm with print option
Fastest print speed 320m/min 60um model
Additiof consumable Plug in cartridge with smart chip. 375ml Ink and 750ml Makeup
Standard ports Optical sensor, encoder, Ethernet, USB
Weight Net 27Kg. Gross weight: 40Kg Including accessories and packing box
