STRETCH HOODING MACHINE

Home STRETCH HOODING MACHINE

STRETCH HOODING MACHINE

CSH Series Detailed Introduction

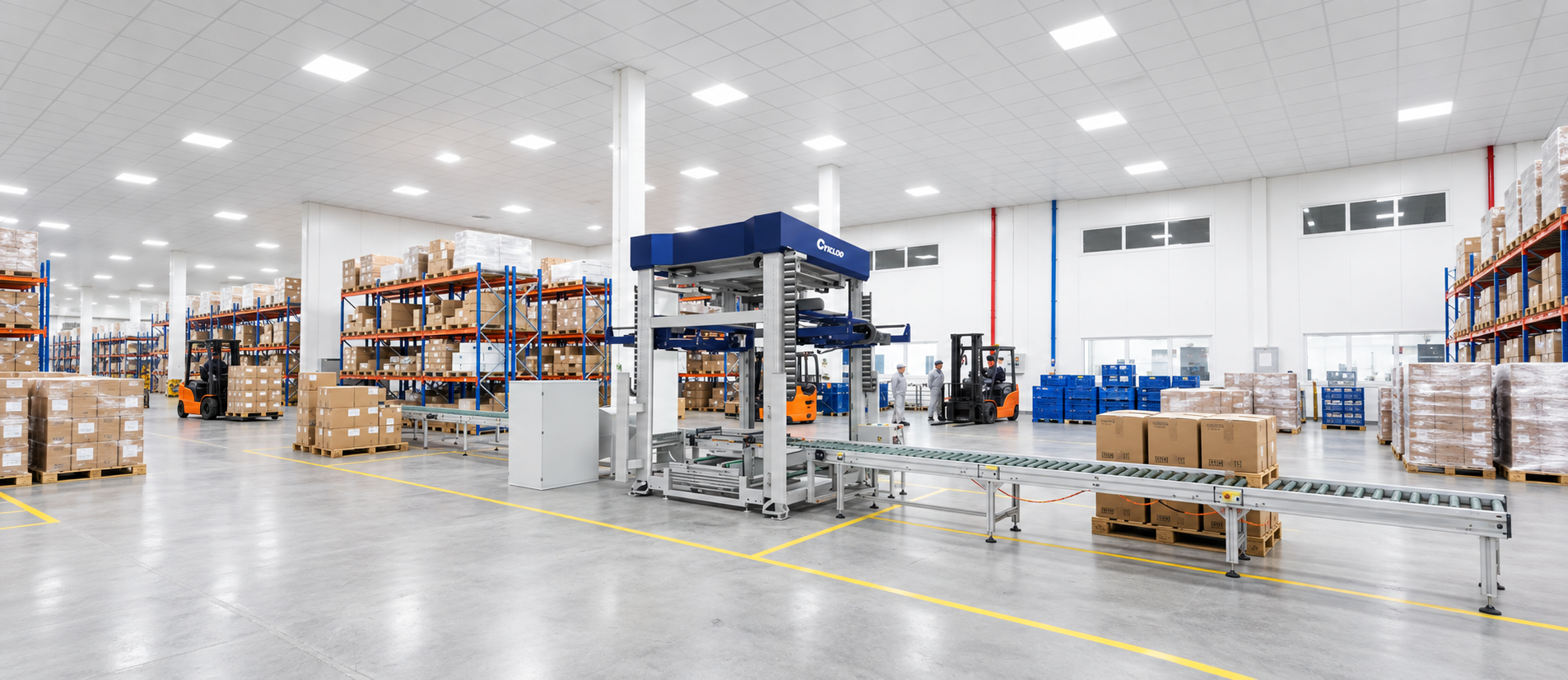

The stretch hooding machine is suitable for various pallet products. The film bag covers the products from top to bottom, providing four to five-sided wrapping, protecting against moisture, dust, and UV rays. The tough film clamping force ensures the safety and stability of the products, providing comprehensive protection for storage and transportation.

Technical features

Model Variable Ratio Stretch Hooding Machine Fixed Ratio Stretch Hooding Machine
Capacity Transport speed 250 mm/s, product size 750L×750W mm, 25% stretch
Output (ind. pallet H:1800 mm) < 80 pal/h < 100 pal/h
Output (ind. pallet H:1200 mm) < 90 pal/h < 110 pal/h
Output (ind. pallet H:1000 mm) < 100 pal/h < 120 pal/h
Output (ind. pallet H:600 mm) < 110 pal/h < 130 pal/h
Compressed air pressure 0.5–0.7 MPa 0.5–0.7 MPa
Air consumption 140 L/min, ANR 300 L/min, ANR
Max. product heights 1800 mm 1800 mm
Min. cross-sectional dimensions of packaging 600 x 600mm 600 x 600 mm
Max. cross-sectional dimensions of packaging 1350 x 1350 mm 1400 x 1400mm
Min. transport height 600 mm 600 mm

Stretch Film Detailed Introduction

Stretch film is used to secure various pallet products, providing protection against dust, moisture, and broken during transportation and storage. The quality of the stretch film also affects the final packaging performance. Cyklop’s professional team can provide suitable stretch films for different applications according to customer needs.

Characteristics

  • High-strength protection: Made from high-quality raw materials and advanced processes, it enhances tensile and tear resistance, effectively resisting external impacts and ensuring the safety of products.
  • Efficient protection: High transparency and excellent self-adhesion, dustproof, moisture-proof, UV-resistant, with added rust protection, suitable for various products.
  • Cost-saving: High tensile strength and large elongation rate, reducing material usage while maintaining excellent wrapping effect, significantly lowering packaging costs.
