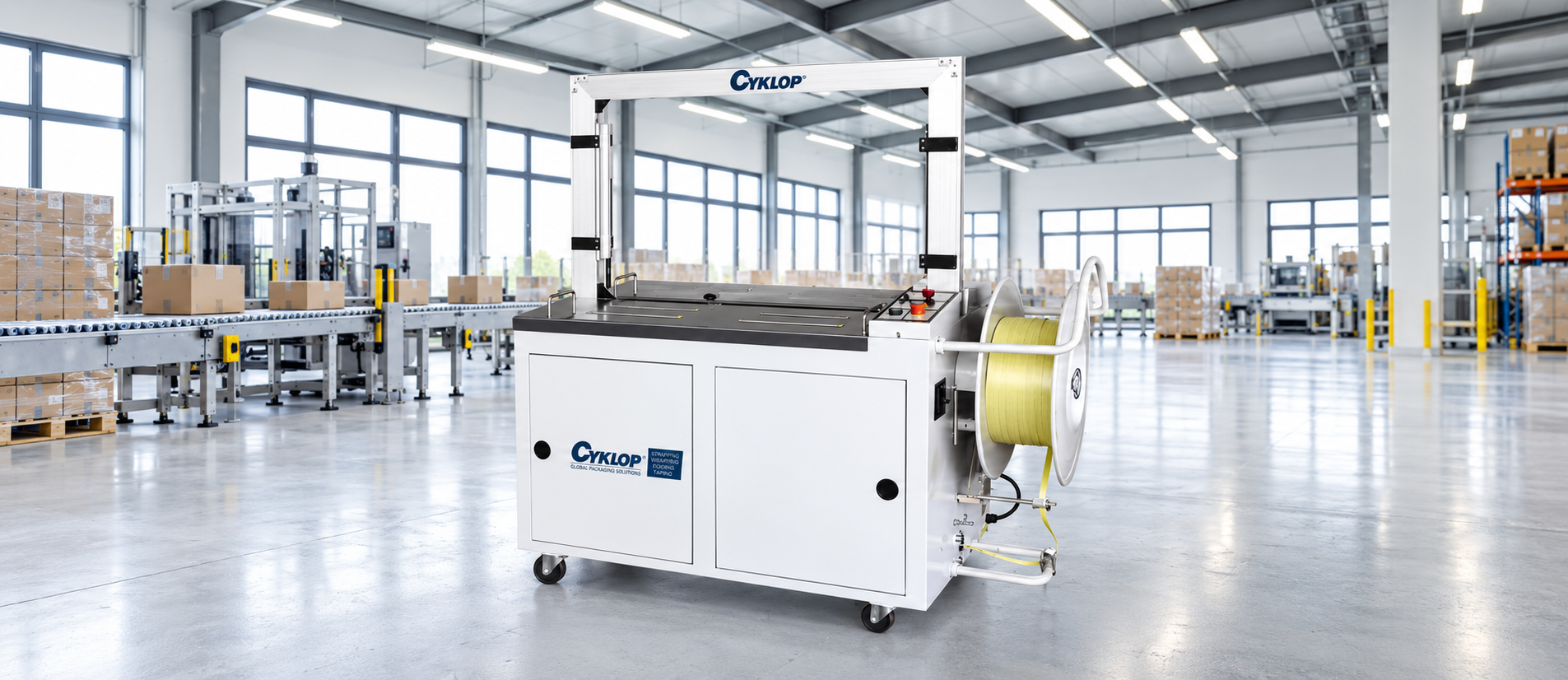

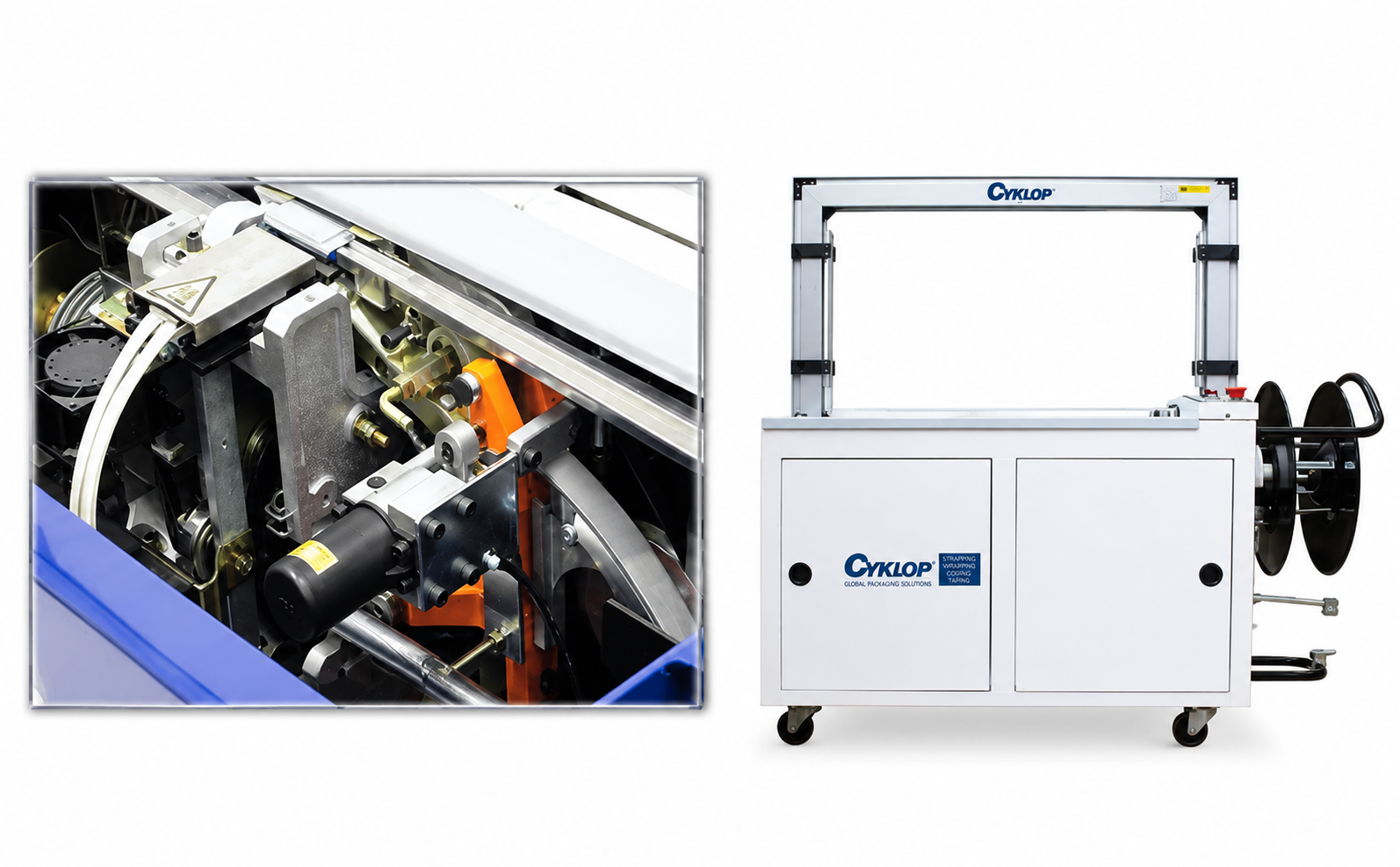

CP 19CA
The automatic strapping machine CP 19CA is suitable for strapping various packages or boxes. The machine is able to process PP strap of 9 to 19 mm and has a very simple control panel. The CP 19CA is also mobile because of the swivel wheels. The strapping machine can make up to 30–32 strappings per minute, depending on the set tension, package size and arch size. This makes the CP 19CA ideal as a starter in automatic strapping.
| Min. package size | 200 x 750 x 500 mm (LxWxH) |
| Strapping material |
Polystrap 9,10,11,12,13,15,19 mm Thickness 0.6 - 1.0mm |
| Strap coil | Core diameter 200 mm Outer diameter 400 mm Width 160 mm |
| Strap tension | 70 - 882 N ~90 Kgs |
| Packing Type | Parallel Strapping, Continuous Mode Manual Operation, Ball Switch |
| Sealing method | Hotseal |
| Noise | ~75 dB(A) |
| Warm up time | Approximately 1 min |
| Power | 380V, 50/60 Hz 1.0kW 10A 3P |
| Machine weight | Approximately 220 kg |
| Machine Dimensions | L1380 x W620 x H1540 mm |
| Operating temperature | 5 - 40 °C |
| Dimensions of machine (LxWxH) | 1090 x 890 x 750 mm |
| Sealing | Bottom and top |
| Consumables | PP/PVC Tape |
| Tape outer roll diameter | 350 mm (max) |
| Tape core diameter | 76 mm |
| Tape width | 50–75 mm |
| Pack size – length | min 150 mm max |
| Pack size – width | 120 mm – 480 mm |
| Pack size – height | 120 mm – 480 mm |
| Capacity | 1200 packages / hour |
| Transport | Side 20 meters / hour |
| Protection | IP 55 |
| Power | 220 V / 50 Hz / 1 phase |
| Weight | 200 Kg |
