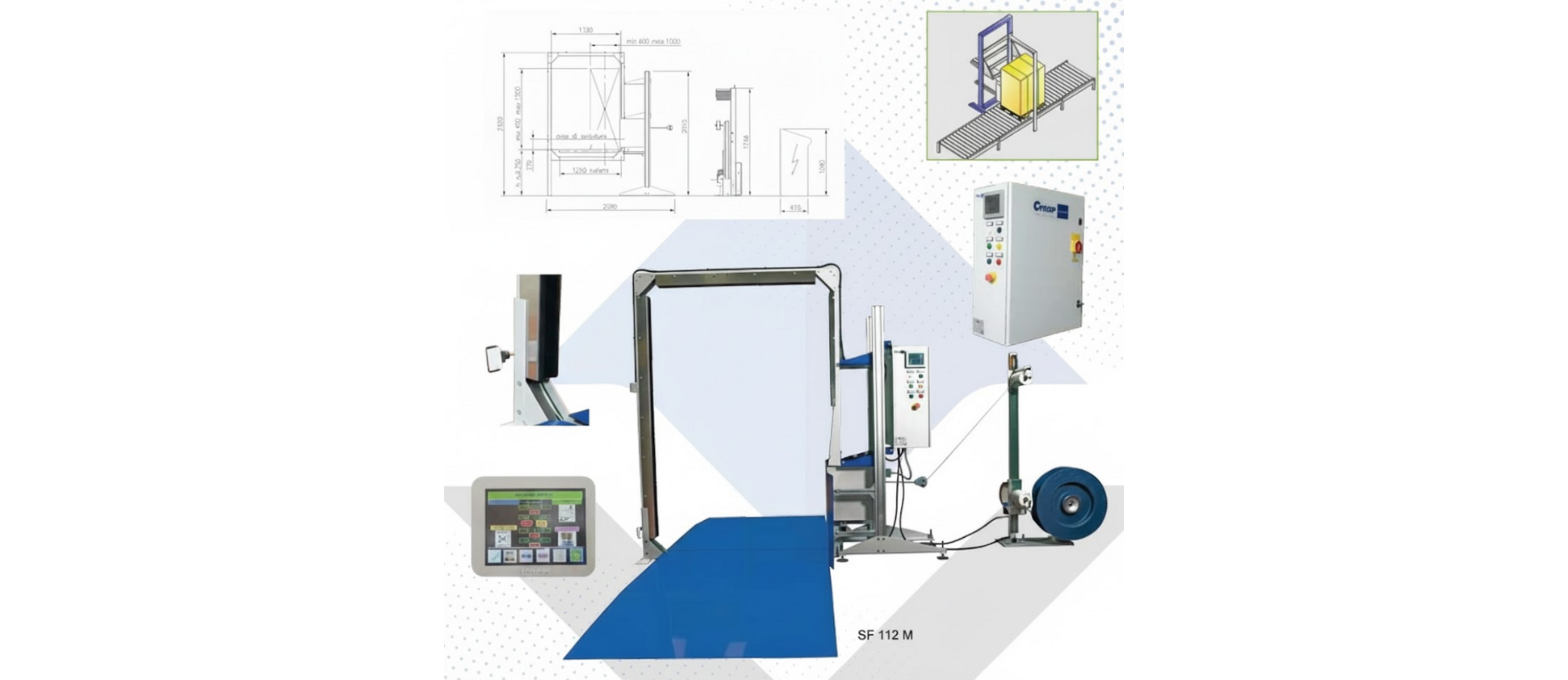

SF/SP 112 M VERTICAL STRAPPING MACHINE – HEAD ON SIDE

The SF/SP 112 M side strapping machine allows a fully automatic positioning of the strap on package and pallet. Possibility to perform one or more vertical straps with PP or PET. Basic components for all machines: strapping head, structure with arch to guide the strap around the package, electrical cabinet with Siemens PLC and proface touch pannel, strap dispenser.

La reggiatrice laterale SF/SP 112 M, rende completamente automatico il posizionamento della reggia sul collo e pallet con la possibilità di eseguire una o più legature verticali con reggia di poliestere o polipropilene.

Componenti di base: testa di reggiatura, struttura con arco di scorrimento della reggia attorno al pacco, quadro elettrico di alimentazione con PLC Siemens e pannello proface, carrello svolgireggia.

TECHNICAL FEATURES CARATTERISTICHE TECNICHE :

Strapping
Reggiatura
Vertical
Verticale
Head
testa
Fixed, side
Fissa laterale
Package dimensions
dimensioni pacco
Mm. 800 – 1200 ( W )
Mm. 450 – 2100 (H)
Tension
tensione
Up to 5500 n (cfh1)
Up to 2200n (cfl 2)
Electrical cabinet
pulpito
With PLC S7/300 proface
Strap type
reggetta
PP, PET
Alimentation
Alimentazione
400 V + 3f + n + - 50 Hz 24 V DC 2,5 KW ±

BASIC MACHINE & OPTIONS

SF-112-M
SP-112-M
Strap-lance speed 700mm/s
Velocità Lancia 700mm/s
F=
P=
For package, closed arch
Per pacchi, arco chiuso
For pallets, with lance
Per pallet, con lancia
SF / SP-112- MV
V =
Movable head, 500mm
Testa mobile, avanzamento  500mm
SF / SP-112-MVB
B =
Floating head
Testa flottante
Pneumatic strap guide for strap perpendicular to package
Dispositivo pneumatico per una reggetta perfettamente perpendicolare al pacco
For package dimensions over:
Per pacchi di dimensioni superiori a:
W    1000 H 450/1.500
Light press (column type, motorized with inverter)
Pressa Leggera
Max force 500 kg
Flap opener
Canaline
Only with selected option light press
Solo con opzione pressa leggera
Bigger arch for bigger packages
Arco per pacchi di grandi dimensioni
Package with height over 2.100mm
Per pacchi di altezza superiore a
2.100 mm
