SF 113 M VERTICAL STRAPPING MACHINE – HEAD UNDER

Home SF 113 M VERTICAL STRAPPING MACHINE – HEAD UNDER

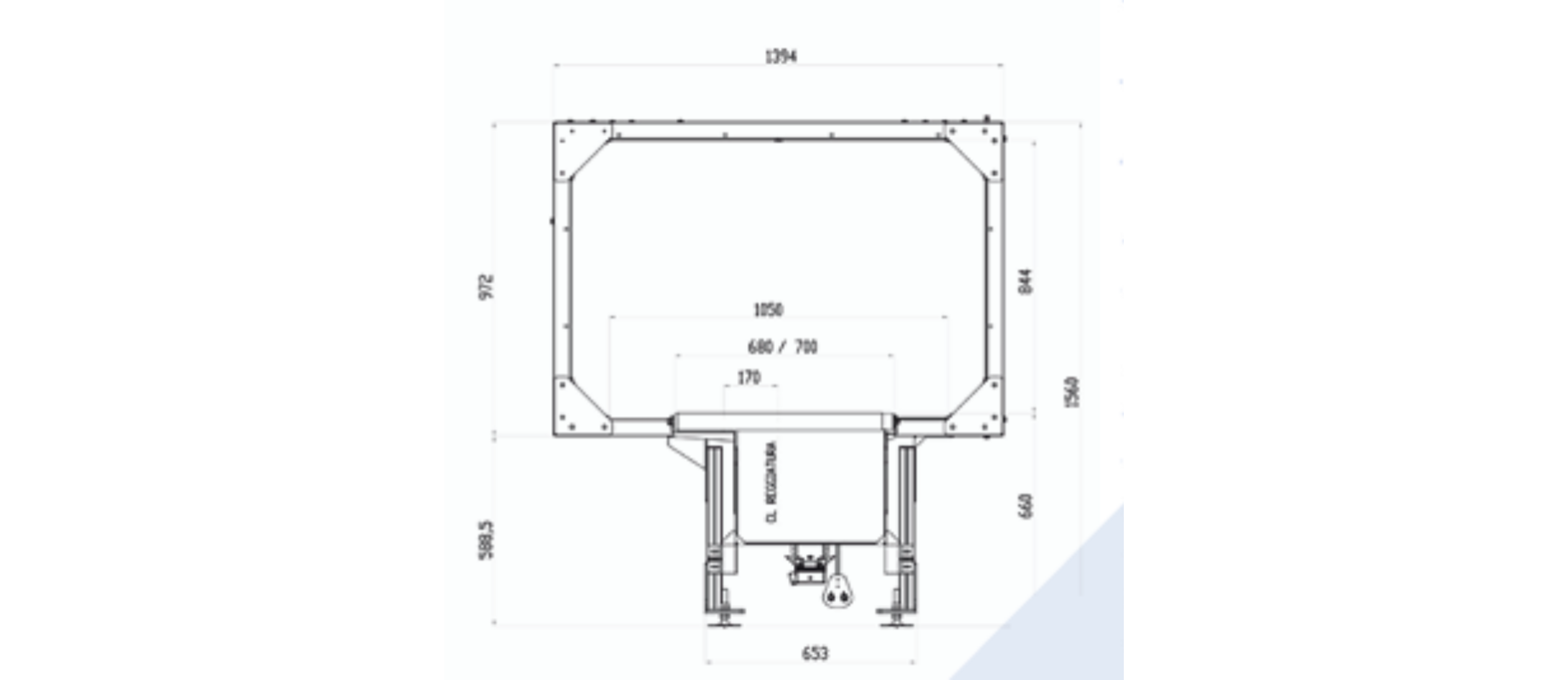

SF 113 M VERTICAL STRAPPING MACHINE – HEAD UNDER

The SF 113 M is a strapping machine with sealing under the package for automatic vertical strapping.

Basic components for all machines: strapping head, structure with arch to guide the strap around the package, electrical cabinet with Siemens PLC and proface touch pannel, strap dispenser.

La SF 113 M è una reggiatrice automatica verticale con saldatura sotto il pacco.

Componenti di base: testa di reggiatura, struttura con arco di scorrimento della reggia attorno al pacco, quadro elettrico di alimentazione con PLC Siemens e pannello proface, carrello svolgireggia.

TECHNICAL FEATURES CARATTERISTICHE TECNICHE :

STRAPPING
REGGIATURA
Vertical
Verticale
HEAD
TESTA
Fixed, under
Fissa sotto
PACKAGE DIMENSIONS
DIMENSIONI-PACCO
mm. 80-470 ( W )
mm. 30-500 (H)
WORKING HEIGHT
ALTEZZA PIANO LAVORO
760 -820mm
TENSION
TENSIONE
Up to 5500 N (CFH1)
Up to 2200N (CFL 2)
ELECTRICAL CABINET
PULPITO
With PLC S7/300 proface
STRAP TYPE
REGGETTA
PP, PET.
ALIMENTATION
ALIMENTAZIONE
400 V + 3F + N + T – 50 HZ 24 V DC 2 kW ±
