CSM Series Detailed Introduction

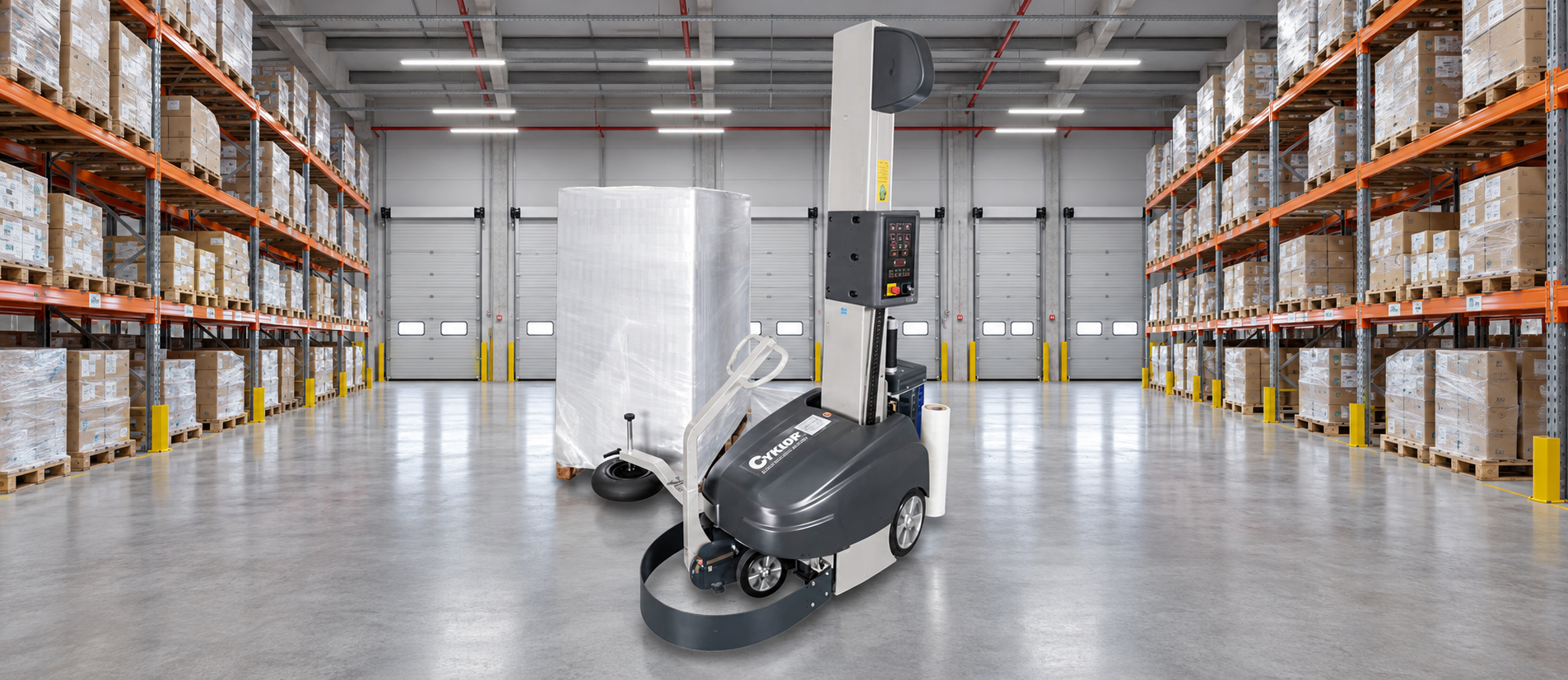

Self-propelled wrapping machines can independently “walk” around goods and wrap them with film, unrestricted by space or the size and shape of the goods.
V2×AGM battery, 12V, 58 Ah each; high performance and long service life.
Temperature range: +5°C to +40°C
Package dimensions: Min. L500 × W400 mm / Max. L7000 × W6000 mm / Circumference: max. 26 m
| Model | CSM 220 | CSM 230 | CSM 250 |
|---|---|---|---|
| Pre-stretch | - | - | 200% |
| Pallet through-put | 200 pals/charge | 200 pals/charge | 200 pals/charge |
| Speed | 50 - 80 m/min | 50 - 80 m/min | 50 - 80 m/min |
| Film thickness | 12 - 35 µm | 12 - 35 µm | 15 - 30 µm |
| Max. wrapping height | 2,100 / 2,600 / 2,800 mm | 2,100 / 2,600 / 2,800 mm | 2,100 / 2,600 / 2,800 mm |
