HAND TOOL MODEL LGT 260

Home HAND TOOL MODEL LGT 260

HAND TOOL MODEL LGT 260

MORE THAN A CENTURY OF GLOBAL MARKING, CODING & PACKAGING SOLUTIONS

ONE BUTTON BATTERY OPERATED
HAND TOOL FOR PLASTIC STRAPPING

✓ Tension force 2800 N (4500 N at tension wheel), high tension, suitable heavy duty

✓ Easy operation and simple adjustment

✓ High performance Li-ion battery 18V–5.0 Ah with power display function

✓ Up to 750 strapping cycles per charge

✓ Suitable for building materials, metal, wood, paper, printing and logistics industries

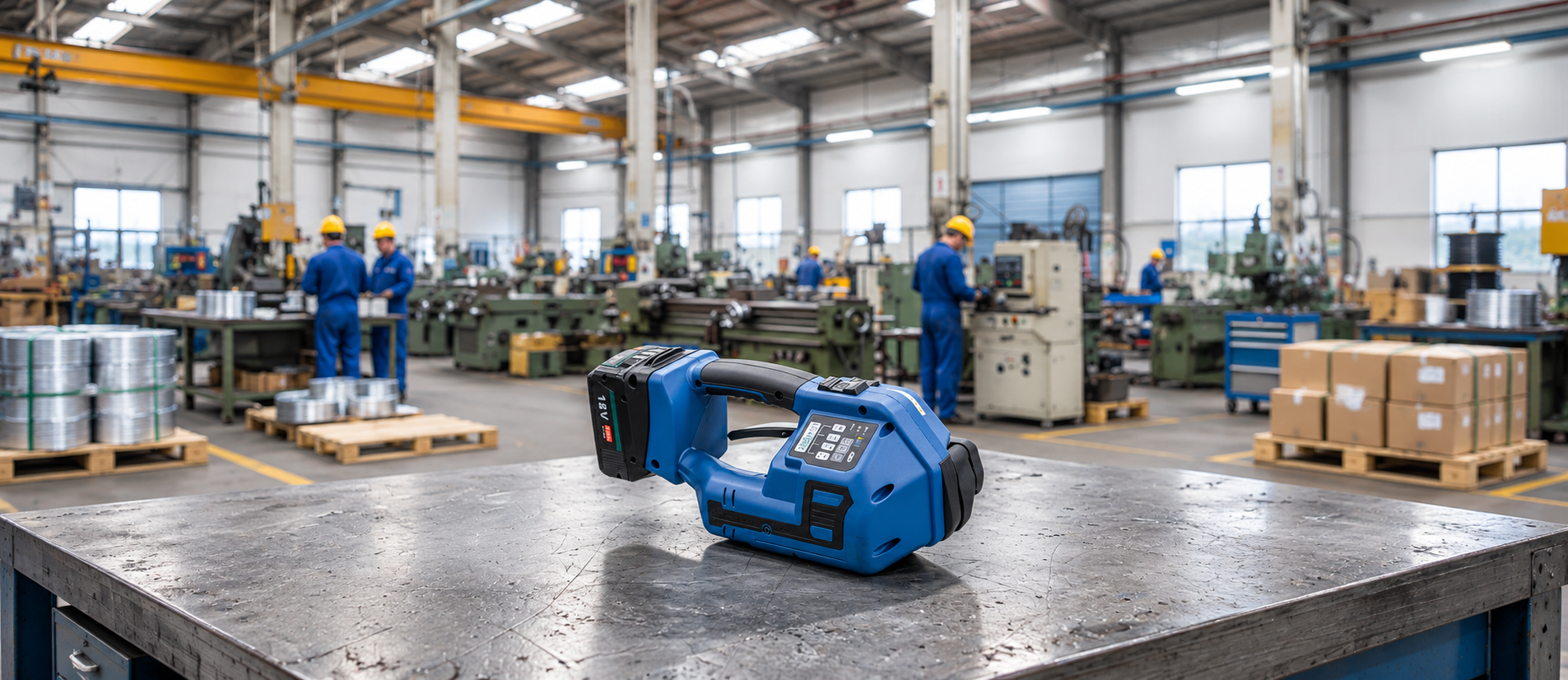

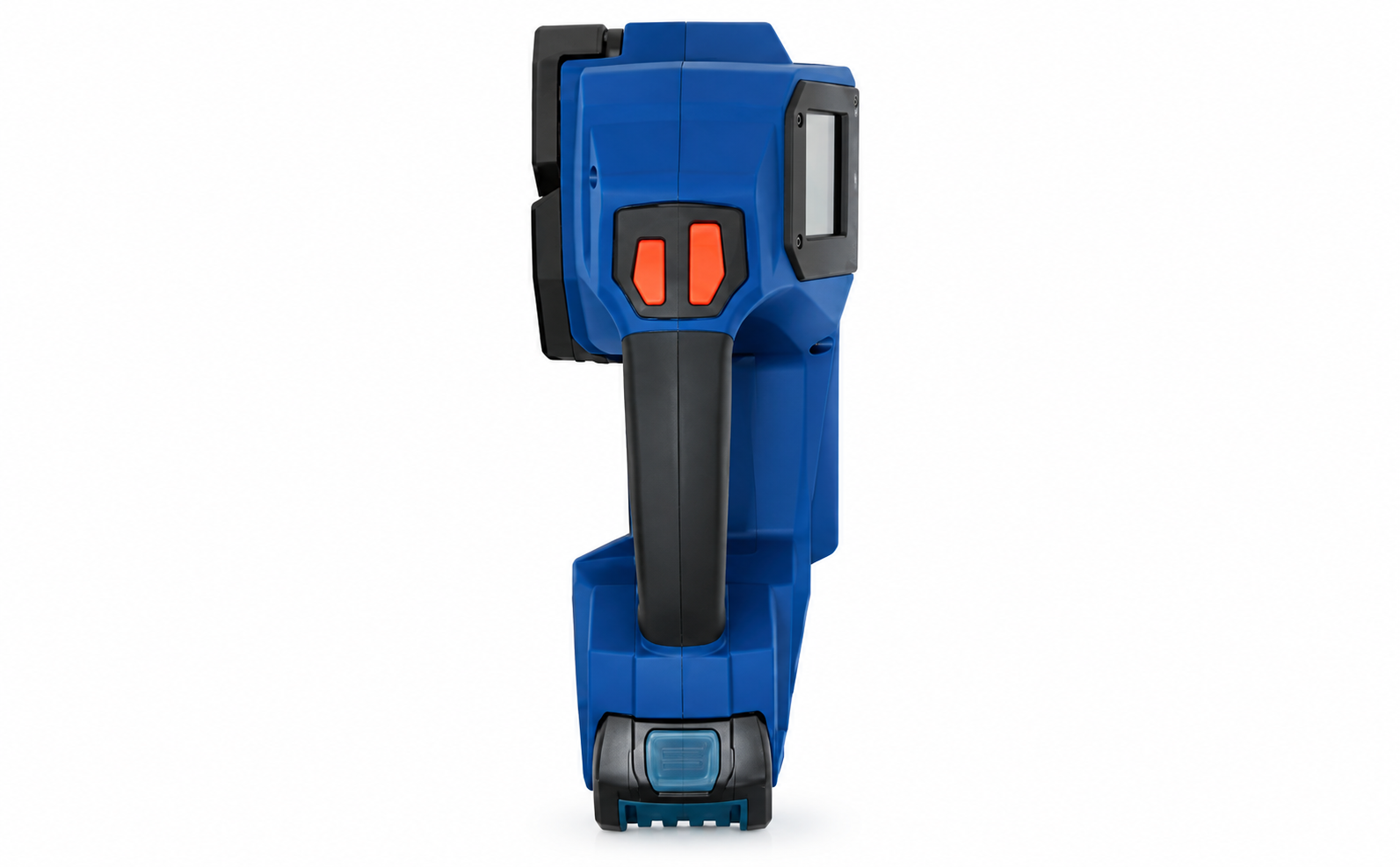

LGT 260 One Button Battery-Operated Hand Tool for Plastic Strapping

Compact, easy-to-use strapping tool designed for reliable tensioning and sealing for industrial packaging needs.

  • Tension Force 3000N (5500N at Tension Wheel), High Tension, Suitable for Heavy Duty Application
  • Easy Operation and Simple Adjustment
  • High Performance Li-ion Battery 18V-5.0 Ah with Power Display Function
  • Up to 600 Strapping Cycles per Charge
  • Suitable for Bulking Materials, Metal and Wood Industries
LGT 260-19 – Technical Data
Tool Weight 3.7 Kg
Battery Weight 0.62 kg
Dimensions (L × W × H) 335 × 145 × 145 mm
Tension Force 800 – 3000 N
Sealing Method Friction Weld
Strap Type PP & PET
Strap Width 16 – 19 mm
Strap Thickness 0.6 – 1.3 mm
Battery
Li-Ion Battery 18V – 5.0Ah
Strapping Cycles / Charge Up to 700
Charging Time 90 min
Battery Life Charged / Discharged 2,000 times
Charger Voltage 100 – 240V
Operation
Operation Mode Automatic / Semi-automatic / Manual
Protection Base Plate Included

The Cyklop OmniStrap 380 is the universal model in our range of cost-effective battery-operated strapping tools. Designed for simplicity and efficiency, the OmniStrap combines all essential strapping functions like tensioning, sealing, and cutting into one easy-to-use device. This all-in-one functionality simplifies the strapping process, reduces handling time, and increases overall efficiency on the job.

It features adjustable strap tension ranging from 250 to 4500 N, making it suitable for a wide variety of applications. This wide tension range allows the tool to be adapted to different packaging requirements and materials, making it suitable for use across a broad spectrum of industries from logistics and warehousing to manufacturing and distribution.

Compatible with both PET and PP strap widths of 12 to 16 mm, the OmniStrap offers flexibility for diverse packaging needs. Its battery-powered operation allows for full mobility, enabling use in multiple locations without dependence on external power sources. Weighing only 3.92 kg and ergonomically balanced, the tool ensures comfortable and quick operation for the user. Additionally, the device includes memory for five programmable settings, allowing consistent and efficient performance with every use.

Easy to use

  • Touch Display
  • Memory mode
  • Strap alignment guides
  • Welding time settings
  • Tension force settings

Improved performance

  • Variable tension speed
  • Tension indicator (filled out bars)
  • Tension range with low mode
  • More cycles per charge

Flexible & reliable

  • Save favorite settings
  • For PP/PET strap
  • For heavy and light packaged goods
  • Display & audible signal
  • Impact, dust, and moisture resistant
Packaging machine
TECHNICAL DATA
Strap PP (Polypropylene)
PET (Polyester)
Strap thickness 0.5 - 1.3 mm
Tension force 250 - 4500 N
Weight 3.3 kg tool body
0.62 kg battery
Strapping cycles per charge PP - 750
PET - 550
