FULLY AUTOMATIC ARM WRAPPER

Home FULLY AUTOMATIC ARM WRAPPER

FULLY AUTOMATIC ARM WRAPPER

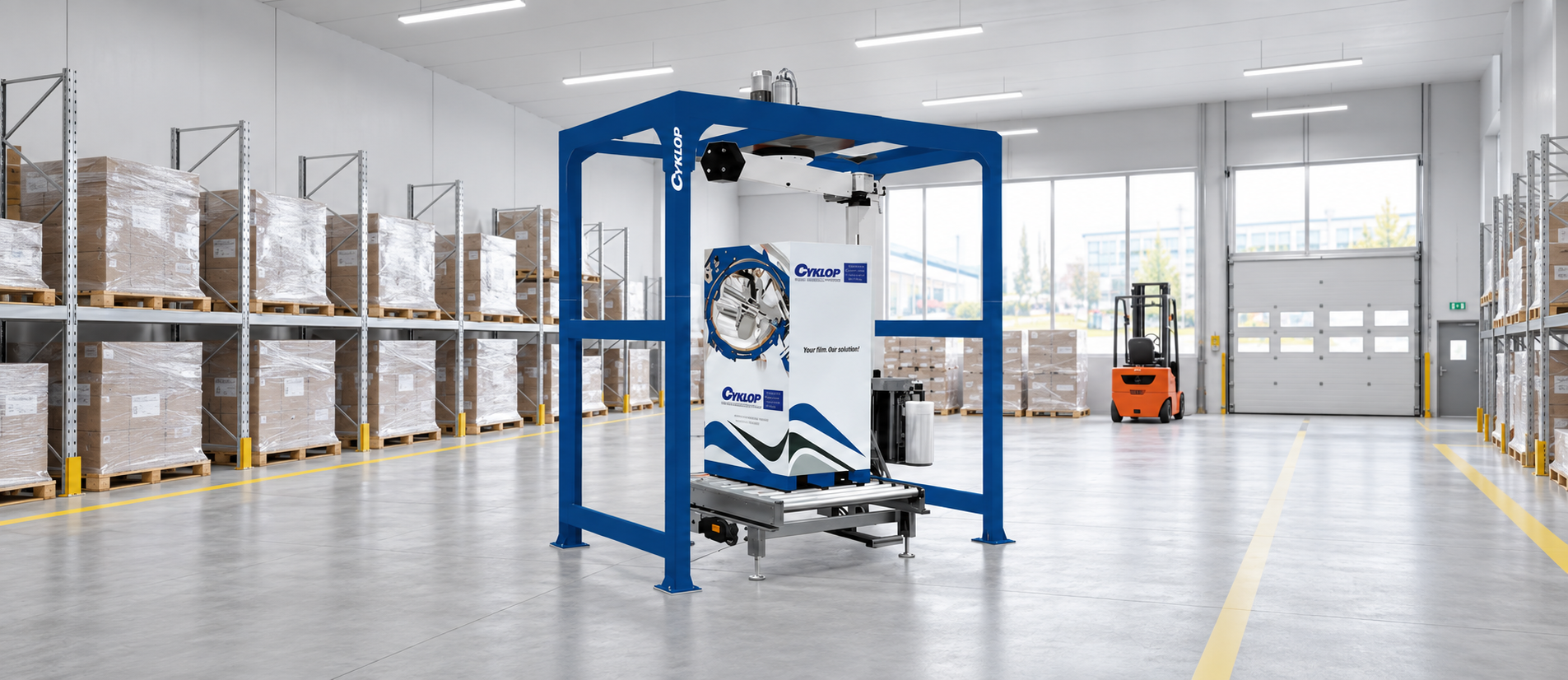

CSA Series Detailed Introduction CSA series are brand-new fully automatic arm wrapping machines launched by Cyklop, which wrap pallets with stretch film. Thanks to its rotating arm, pallets can also be wrapped in a stationary position, which makes the pallet wrapper suitable for unstable and heavy loads, and offers high adaptability in product packaging.

Some devices of CSA series wrappers have 5 patents*, which can effectively control the film during the packaging process, enhance heat sealing accuracy and packaging stability, reduce waste, and improve production efficiency.

*5 patents mentioned above are obtained in China: 1. Cutting device, wrapping device, and cutting method, patent no. ZL202321622397.9 2. Blocking device, patent no. ZL202321623474.2 3. Moving device, patent no. ZL202321620044.5 4. Pre-stretch device, patent no. ZL202321851964.8 5. Support structure, patent no. ZL202321850754.7

Technical features

Speed CSA950: up to 25 rpm
CSA970: up to 30 rpm
CSA990: up to 35 rpm
Min. pallet dimensions (L×W) 400 × 600 mm
Max. pallet dimensions (L×W) 1120 × 1420 mm (other on request)
STD pallet height 2100 mm
Stretch film reel external diameter 250 mm
Stretch film reel weight 18 kg (other on request)
Conveyor height 500 mm
Stretch film reel height 500 mm
Film thickness 10–35 µm
Others All models can be equipped with top sheet dispenser.

Characteristics

  • High-strength shaped structure.
  • CSA structure is for all machine models, and most parts are interchangeable.
  • Stretch film delivery control with two motor torque types are provided: pre-stretch ratio of TPS1 motor torque is 150%–350%, pre-stretch ratio of TPS2 motor torque is 0–400%.
  • Contactless film cutting system is used to effectively increase the service life of wear parts.
  • Movable film cutting system is suitable for pallets with large dimensional differences.
  • Stretch film sealing system can save up to 70% of energy consumption, and it is designed with safety and cost reductions in mind.
  • CSA series wrappers are universal because the wrapper can be installed on any type of pallet conveyor without any mechanical modifications.
  • Horizontal gripper movement system adapts to any type of pallets, even the products protrude the pallets.
  • CSA series have reduced footprint for installation in any layout.
1

PRESTRETCH CARRIAGE MOD. TPS

Instant stretch film dispensing-pulling control with motor torque control, without dandy roller. 50% less wear parts.

2

CONTACTLESS

Stretch film cutting with contactless hotwire, no maintenance.

3

QUICK FILM INSERTION (Q.F.I.)

Easy insertion of stretch film into the pre-stretch carriage.
