FIBER LASER MARKING SYSTEM

Home FIBER LASER MARKING SYSTEM

FIBER LASER MARKING SYSTEM

MORE THAN A CENTURY OF GLOBAL MARKING, CODING & PACKAGING SOLUTIONS

FIBER LASER PRINTER

CM 800F series fiber laser marking system, with its light and agile marking unit, help customers to achieve high-quality and high-speed printing in various production situations. The printing content is flexible, not restricted by fonts, coding or graphics.

✓ Light and agile printing solution for autoparts, electronics, can, cosmetic, pharma and building material industries

✓ Easy to operate

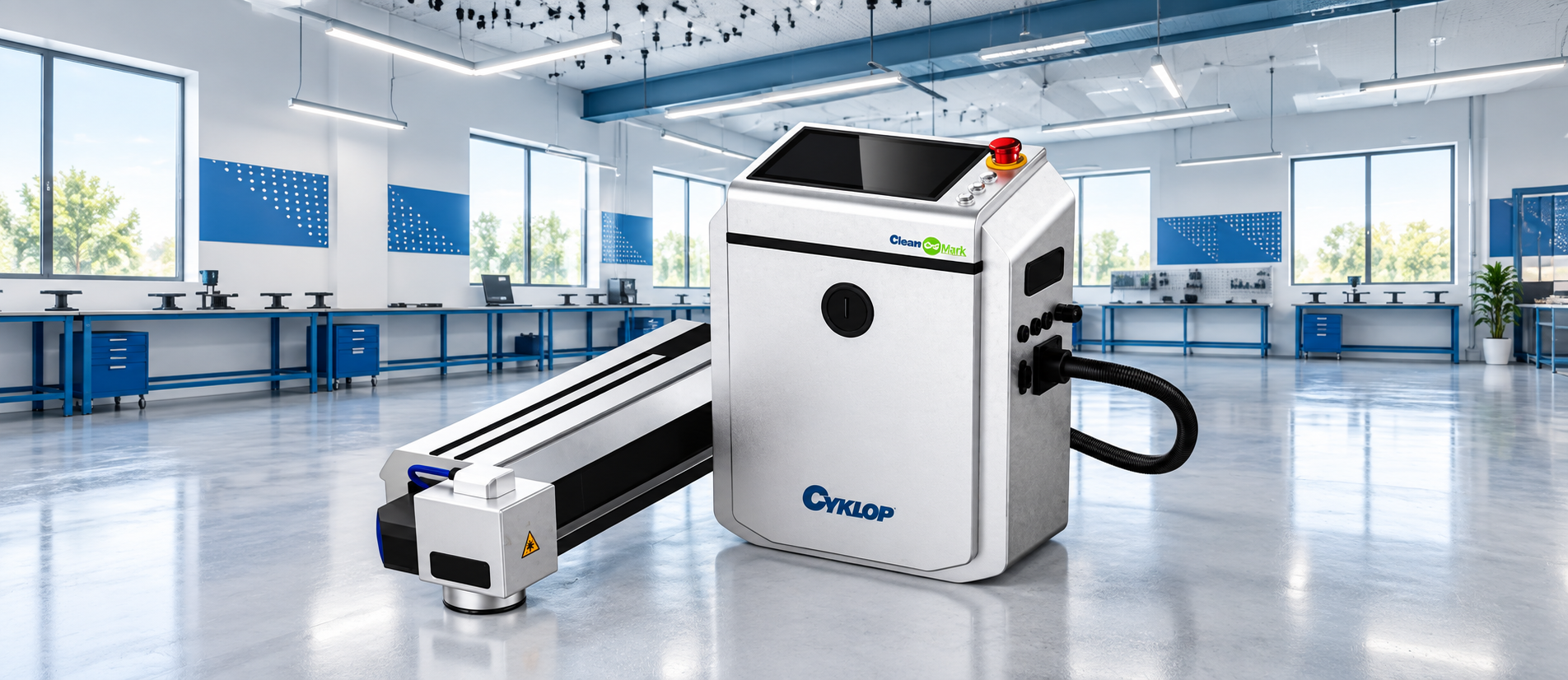

FIBER LASER MARKING SYSTEM THE CM800F SERIES

CM 800F series fiber laser marking system, with its light and agile marking unit, helps customers to achieve high-quality and high-speed printing in various production situations. The printing content is flexible, not restricted by fonts, coding or graphics. It is an ideal coding solution for auto-parts, electronics, can, cosmetic, pharma and building material industries.

Non-stop

  • High performance long-life laser source increases uptime significantly
  • Air-cooled laser source and no wearing parts requires no additional maintenance

Easy to operate

  • Flexible integrated solution with multiple standard beam transmission options
  • Highly integrated modular design ensures simple and convenient installation and maintenance

High efficiency

  • High-speed digital galvanometer system to ensure high speed and accuracy
  • Smaller spot size and concentrated energy to handle difficult materials and complex marking requirements
  • Optimized vector calculation logic for more precise and efficient control of lines

No mistake

  • In-house developed touch screen high-speed laser printer control system
  • Human-machine interaction, to reducing mis-operations and ensuring correct marking
  • Multiple high-resolution print field lens options provide accurate and perfect identification

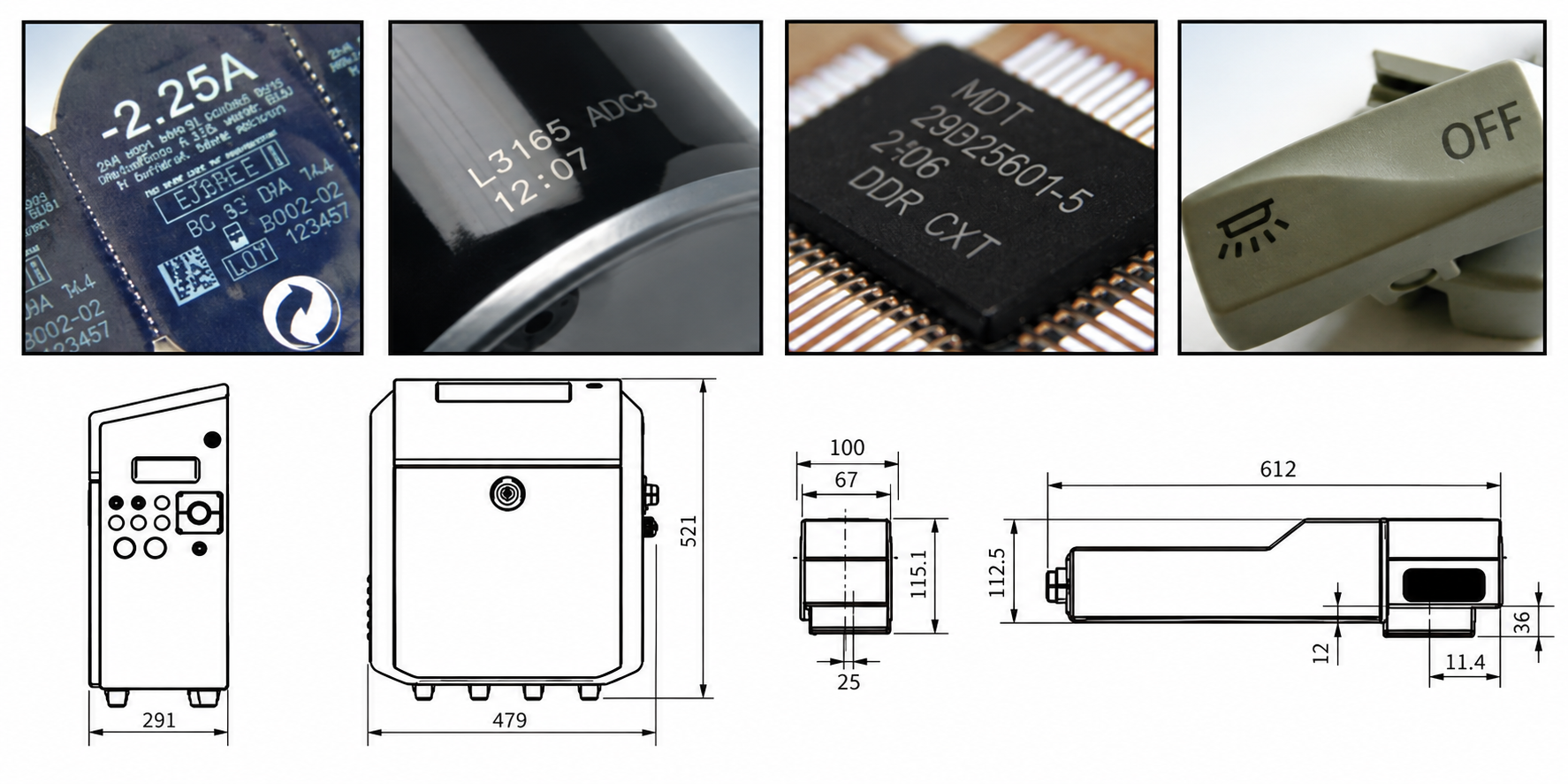

Fiber laser marking samples and machine drawing
TECHNICAL SPECIFICATIONS
Marking speed Up to 2,000 characters/second
Line Speed Up to 200/min
Wave lengths 1,055-1,070 nm
Marking format Standard industrial fonts, Bar codes, Q-R code, Data Matrix, Aztec - code, Han-Xin-code, Graphics, Logos, Symbols etc.
Laser tube Ytterbium (Yb) pulsed fiber laser
User interface Personalized touch control screen
Communication UDP, TCP/IP and Rs232
Integration Flexible beam delivery options
Electrical requirement 110-240 VAC (To be noted when ordering), 50/60 Hz, 1 PH, 0.70 KW
Environment Temperature 5-40°C (41-104°F) Humidity 10%-90%, no condensing
Sealing and safety standards Cabinet: IP54 standard, Marking Unit: Ip54 standard
Weight Standard unit: approx. 34 kg
