CASE SEALER

Home CASE SEALER

CASE SEALER

Taping is the application of an adhesive tape on, for example, a box or other surface. In the packaging industry, tape is often used to close something, in most cases a box or package. In addition, tape is also used to bundle products, to mark, to communicate a message or to prevent theft.

The ultimate goal of taping is to store and/or send your products without damage, so that they end up in perfect condition with your customer. Packaging tape or tape can be applied manually, with a table dispenser or with a box closer.

Machine with manual entry

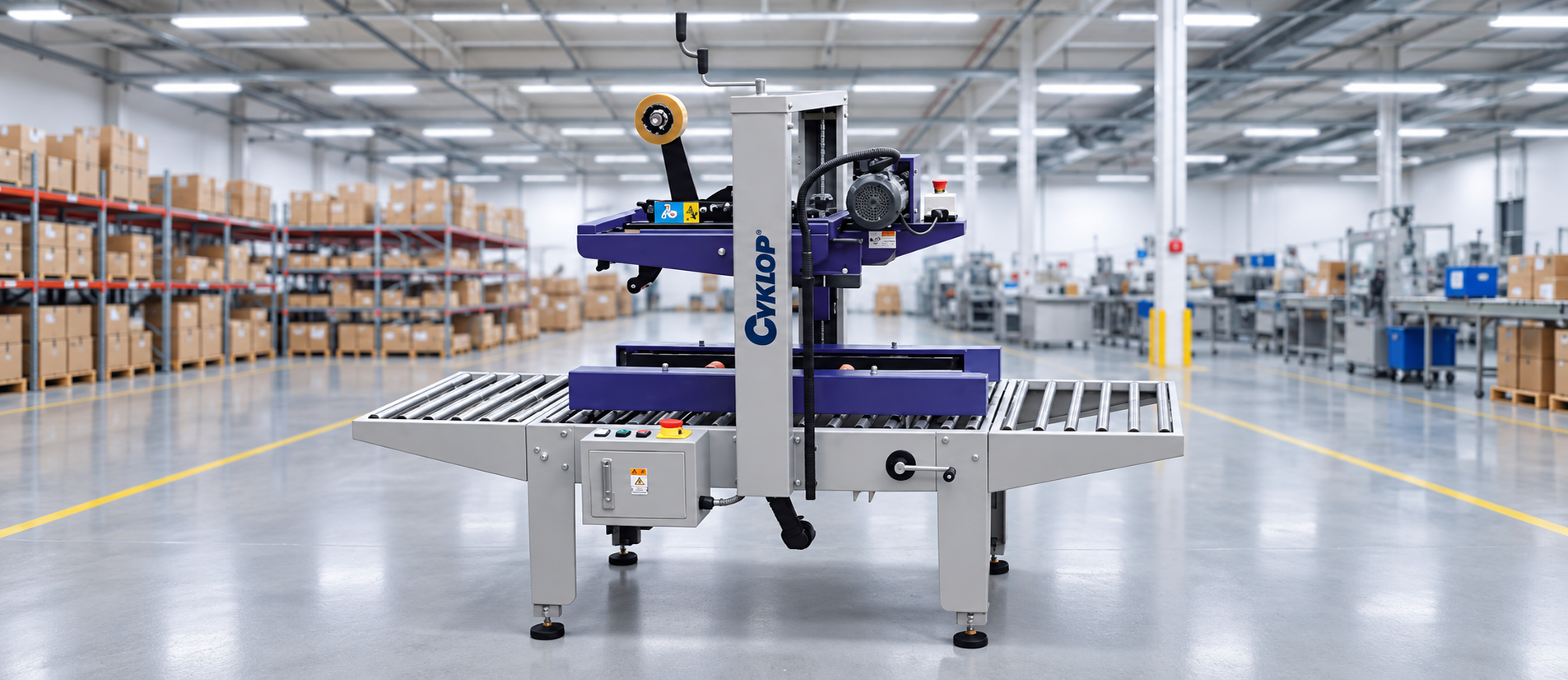

The CT-12TS is a semi-automatic taper suitable for PP or PVC tape from 48 mm to 72 mm. After filling the box, the operator folds the flaps, closes the box and feeds the box manually into the machine.


The bottom and top are then automatically sealed with tape. The machine can easily be adjusted manually to the required width and height. The boxes are transported by motorized side conveyor belts, so that the boxes are perfectly aligned and a good seal is guaranteed.


With the CT 12TS it is possible to professionally close hundreds of packages per day.

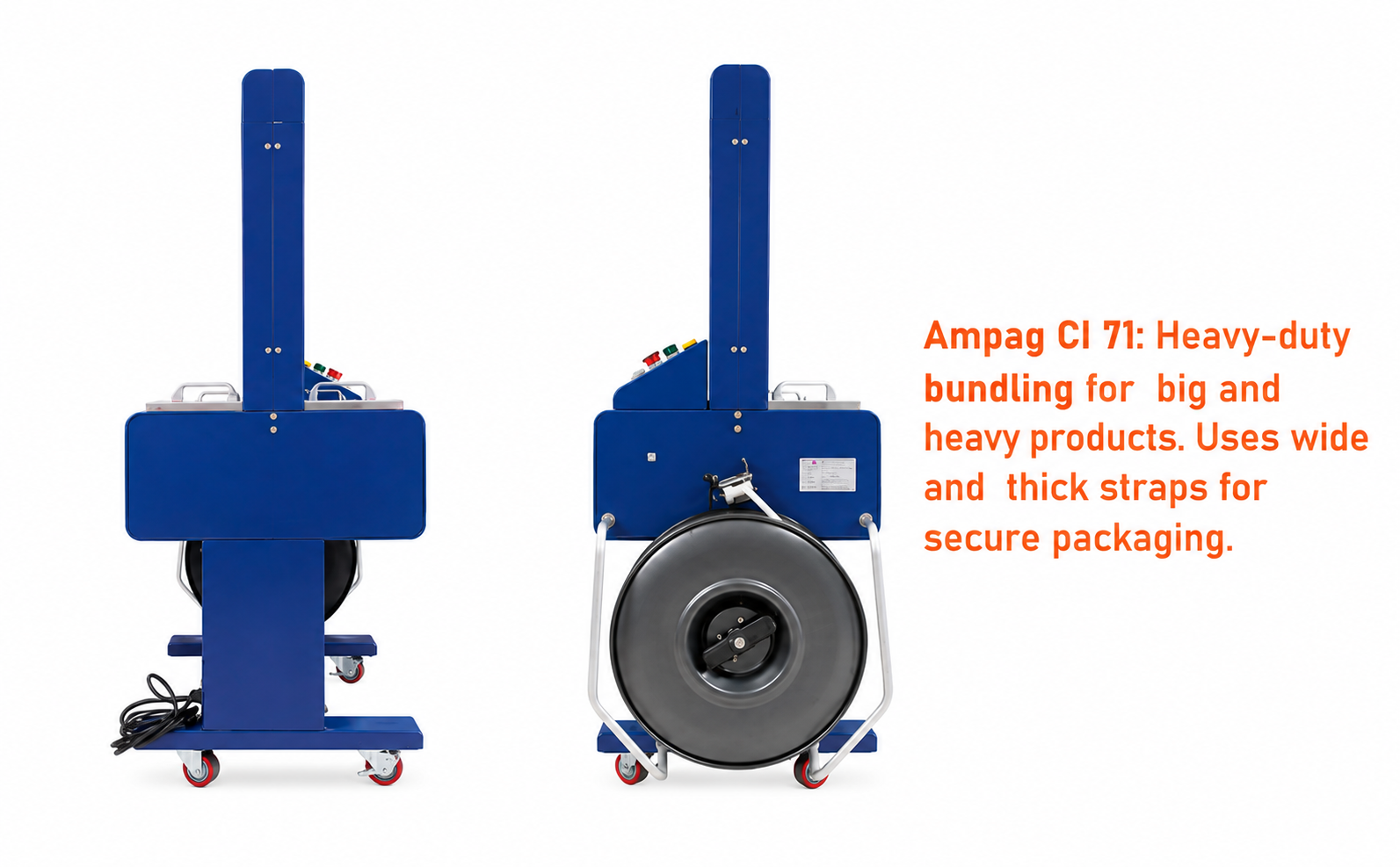

The Cyklop Ampag CI 71 is the ideal choice for companies that need strength and reliability in their packaging process. Specially developed for large and heavy products, this strapping machine combines robust construction with user-friendly operation. With a strapping speed of up to 30 straps per minute and an adjustable tension force from 50 to 800 newtons, it ensures secure and stable strapping even for bulky products.


Thanks to its intelligent PLC control and brushless DC motor, the Ampag CI 71 delivers consistent performance and long-term durability, making it a dependable partner in demanding packaging environments. Operation is simple and intuitive, whether via switch buttons or foot pedal, allowing smooth integration into everyday workflows. The machine is designed with flexibility in mind, supporting a wide range of strap widths and coil sizes, and is equipped with an arch of 850 x 600 millimeters. This adaptability makes it suitable for diverse packaging needs while maintaining the highest standards of security and stability.


When maximum speed is not the priority but uncompromising strength and reliability are essential, the Cyklop Ampag CI 71 is the perfect solution.

Easy to use

  • Simple operation via switch button or foot pedal
  • User-friendly PLC + driver board
  • Ergonomic design

Improved performance

  • Up to 30 strappings per minute
  • Adjustable tension forces up to 800 N
  • Brushless DC motor for long-lasting durability and strapping quality

Flexible & reliable

  • Compatible with strap widths of 9, 10, 12, or 16 mm (0.6 – 1.0 mm thickness)
  • For heavy, bulky products
  • Robust construction
CO2 laser marking samples
TECHNICAL SPECIFICATIONS
Strapping speed Max 30 strappings/min
Tensioning system Arm type
Working table Height 820 mm
Strap sizes width 9,10,12 or 16 mm
Strap thickness 0.6 - 1.0 mm
Strap coil Inner dia.: 200-210 mm
Outer dia.: 400-450 mm
Width:170-190 mm
Control component PLC+Driver board control
Control panel By switch buttons
Power source 1P, 220-240V, 50Hz, 0.85kW
