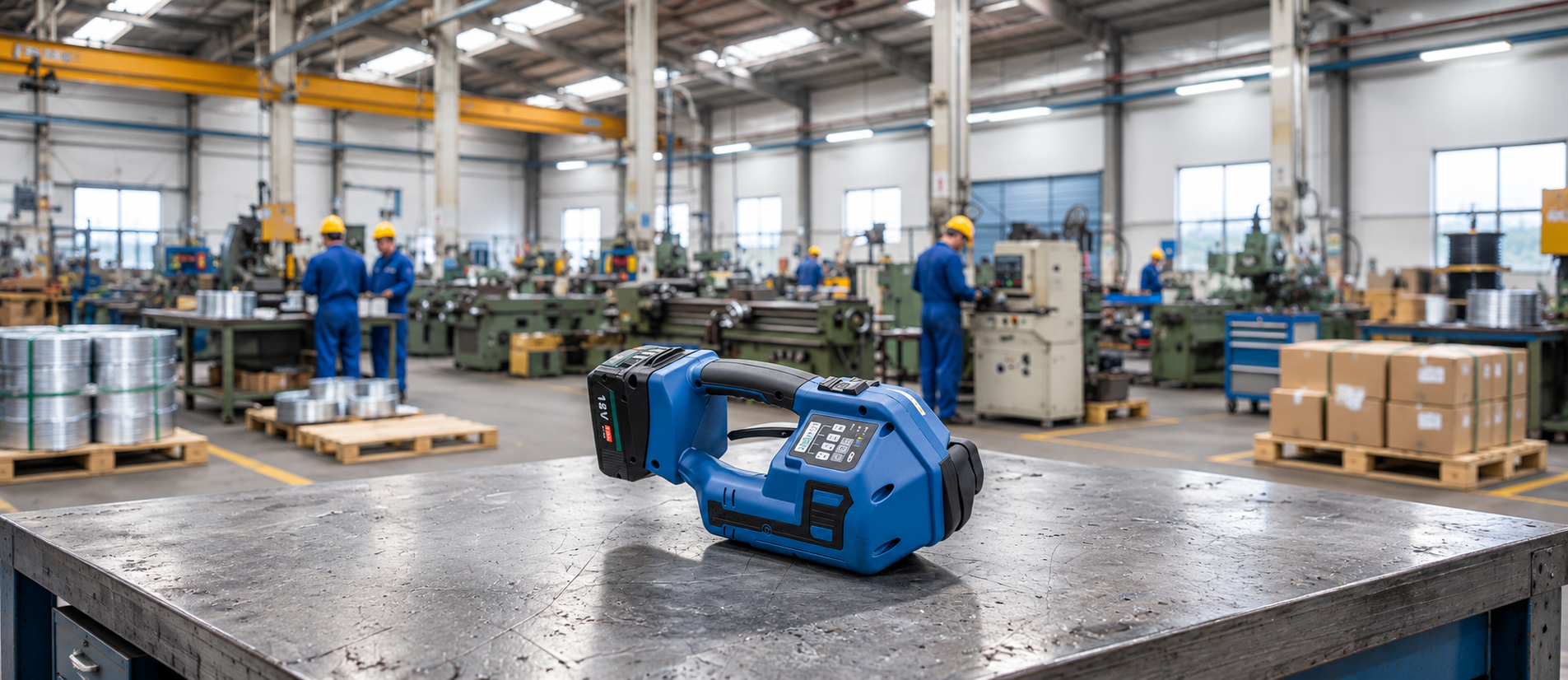

HAND TOOL MODEL LGT 260

The LGT 260 is a one-button battery-operated hand tool designed for efficient plastic strapping applications. Its compact design, high tension capability and simple operation make it suitable for demanding industrial packaging requirements.

The tool is designed for PP and PET straps and uses a friction weld sealing system. Its cordless Li-Ion battery operation provides convenient mobility, while adjustable tension and multiple operating modes support different packaging requirements.

LGT 260

One Button Battery-Operated Hand Tool for Plastic Strapping

Compact, easy-to-use strapping tool designed for reliable tensioning and sealing for industrial packaging needs.

01

High Tension Performance

Tension Force 3000N (5500N at Tension Wheel), High Tension, Suitable for Heavy Duty Application

02

Easy Operation

Easy Operation and Simple Adjustment

03

Powerful Li-ion Battery

High Performance Li-ion Battery 18V-5.0 Ah with Power Display Function

04

High Strapping Capacity

Up to 600 Strapping Cycles per Charge

05

Industrial Applications

Suitable for Bulking Materials, Metal and Wood Industries

TECHNICAL DATA

LGT 260-19

Technical Specifications
01
Machine

Tool & Machine Data

Tool Weight 3.7 Kg
Battery Weight 0.62 kg
Dimensions (L × W × H) 335 × 145 × 145 mm
Tension Force 800 – 3000 N
Sealing Method Friction Weld
Strap Type PP & PET
Strap Width 16 – 19 mm
Strap Thickness 0.6 – 1.3 mm
02
Power System

Battery

Li-Ion Battery 18V – 5.0Ah
Strapping Cycles / Charge Up to 700
Charging Time 90 min
Battery Life Charged / Discharged 2,000 times
Charger Voltage 100 – 240V
03
Control & Safety

Operation

Operation Mode Automatic / Semi-automatic / Manual
Protection Base Plate Included
PERFORMANCE & FEATURES

Designed for Reliable Strapping Performance

01

Easy to use

Touch Display

Memory mode

Strap alignment guides

Welding time settings

Tension force settings

02

Improved performance

Variable tension speed

Tension indicator (filled out bars)

Tension range with low mode

More cycles per charge

03

Flexible & reliable

Save favorite settings

For PP/PET strap

For heavy and light packaged goods

Display & audible signal

Impact, dust, and moisture resistant

PRODUCT REFERENCE

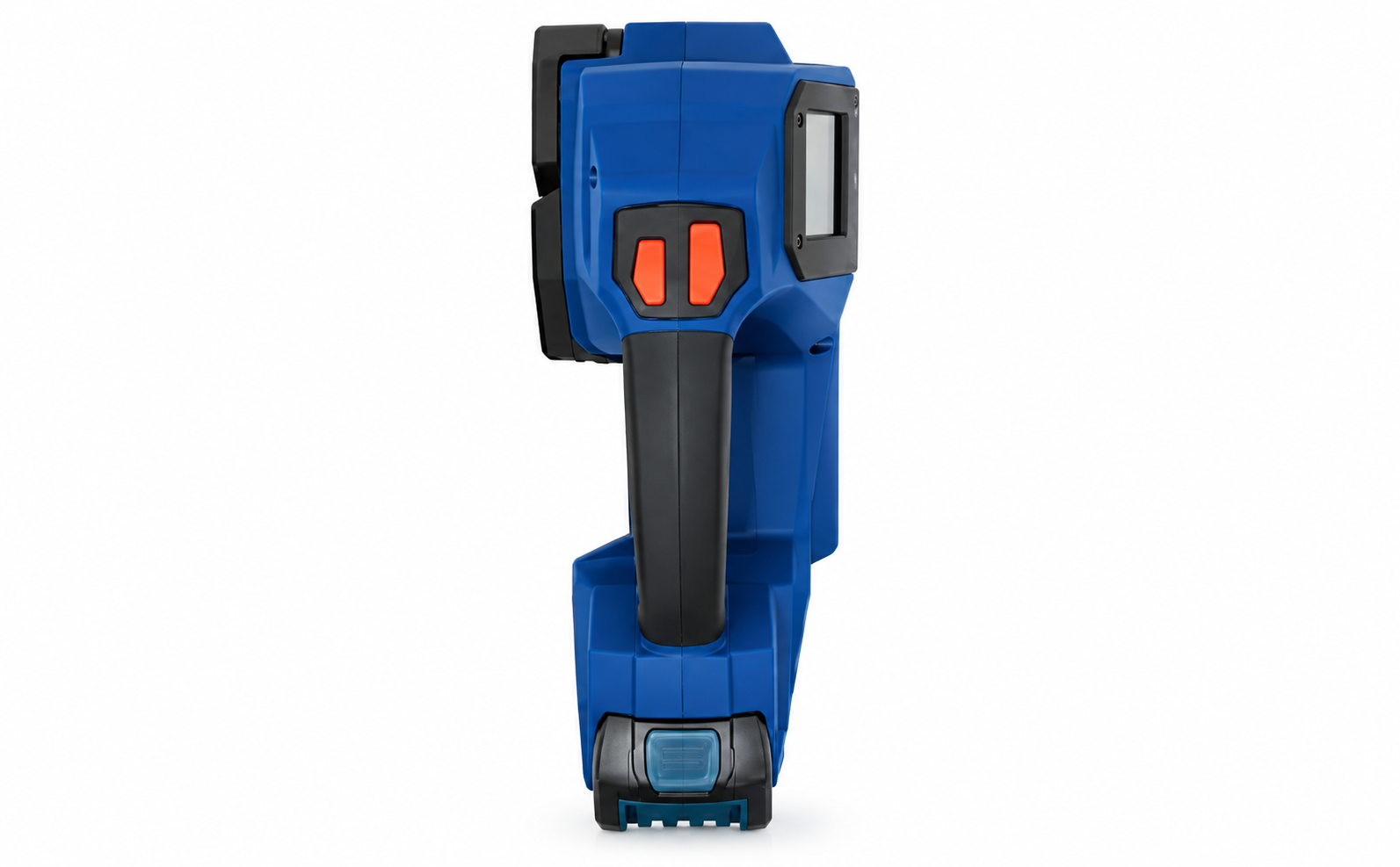

Hand Tool Model LGT 260 Machine Samples & Technical Reference

Hand Tool Model LGT 260 Machine Samples and Technical Reference

Technical Data

Strap PP (Polypropylene)
PET (Polyester)
Strap thickness 0.5 - 1.3 mm
Tension force 250 - 4500 N
Weight 3.3 kg tool body
0.62 kg battery
Strapping cycles per charge PP - 750
PET - 550
