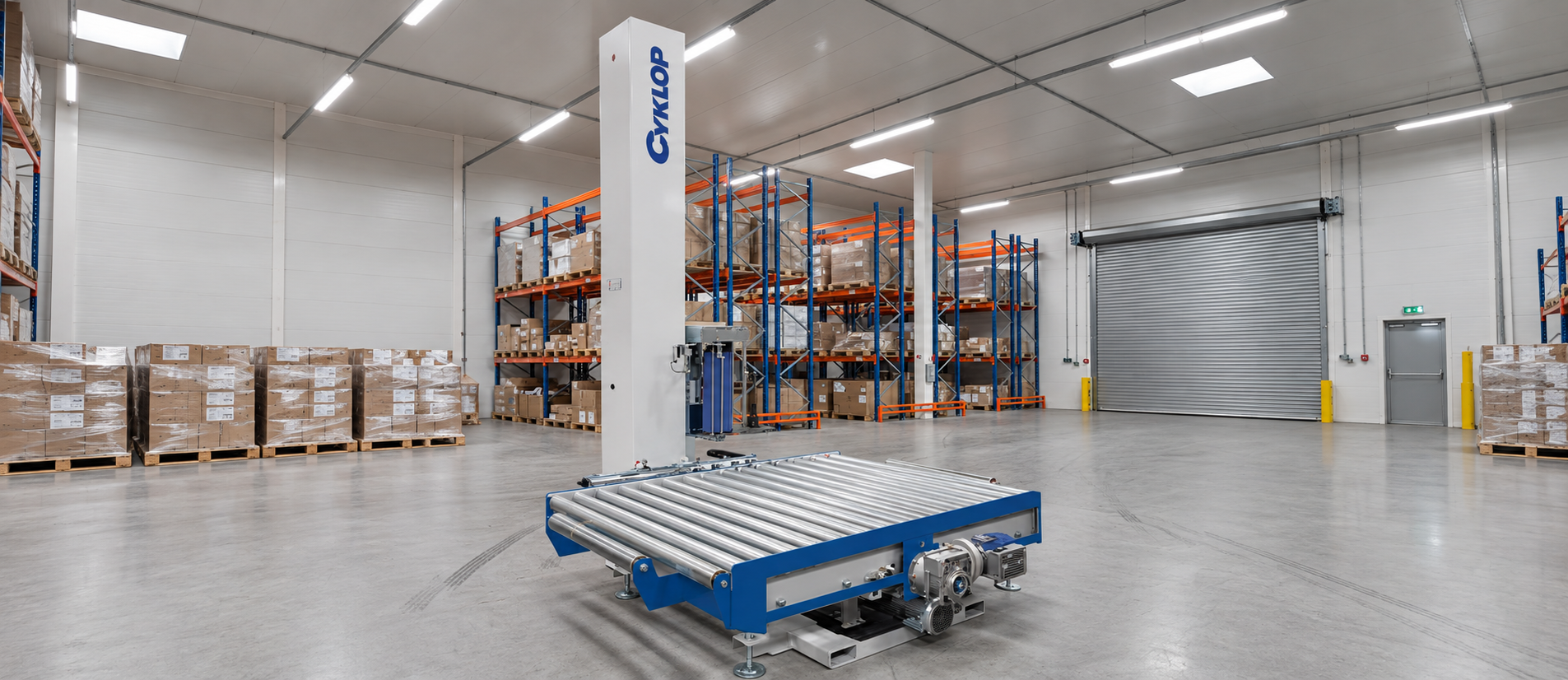

Fully Automatic Turntable Wrapper
FULLY AUTOMATIC TURNTABLE WRAPPER
The Fully Automatic Turntable Wrapper is designed for efficient pallet wrapping and load stabilization using stretch film. The rotating turntable allows the pallet to be wrapped with consistent film application for reliable packaging performance.
The machine is suitable for automated packaging lines where consistent wrapping cycles, controlled film usage and stable pallet loads are required. Its automatic operation can be integrated into different industrial packaging and logistics environments.
Technical Features
| Speed | up to 14 rpm |
|---|---|
| Min. pallet dimensions (L×W) | 800 × 1200 mm |
| Max. pallet dimensions (L×W) | 1000 × 1200 mm |
| STD pallet height | 2100 mm |
| Stretch film reel external diameter | 250 mm |
| Stretch film reel weight | 18 kg (other on request) |
| Conveyor height | 500 mm |
| Stretch film reel height | 500 mm |
| Film thickness | 10–35 µm |
| Others | Can be equipped with top sheet dispenser |
Key Features
Advanced design and intelligent functions for flexible, reliable and efficient pallet wrapping.
Multiple Options
Multiple standard options are available, including roller-type and chain-type turntables.
High Load Capacity
It adopts a turntable support and rotation with a bearing cogwheel, with a maximum load capacity of up to 2000kg.
Automatic Height Detection
Equipped with photoelectric automatic height detection for accurate and consistent wrapping.
Precise Rotation
Precise rotation is achieved through turntable geared motor controlled by inverter.
Stretch Film Control
Stretch film delivery control with two motor torque types: TPS1 pre-stretch 150%–350% and TPS2 0–400%.
90° Infeed Options
90° infeed options are provided for flexible pallet handling and packaging line integration.
Contactless Film Cutting
Contactless film cutting system helps effectively increase the service life of wear parts.
Movable Film Cutting
Movable film cutting system is suitable for pallets with large dimensional differences.
Energy Saving
Stretch film sealing system can save up to 70% of energy consumption and is designed with safety and cost reductions in mind.
Universal & Flexible
CST 935 is universal because the wrapper can be installed on any type of pallet conveyor without mechanical modifications.
Horizontal Gripper Movement
Horizontal gripper movement system adapts to any type of pallets, even when products protrude the pallets.
