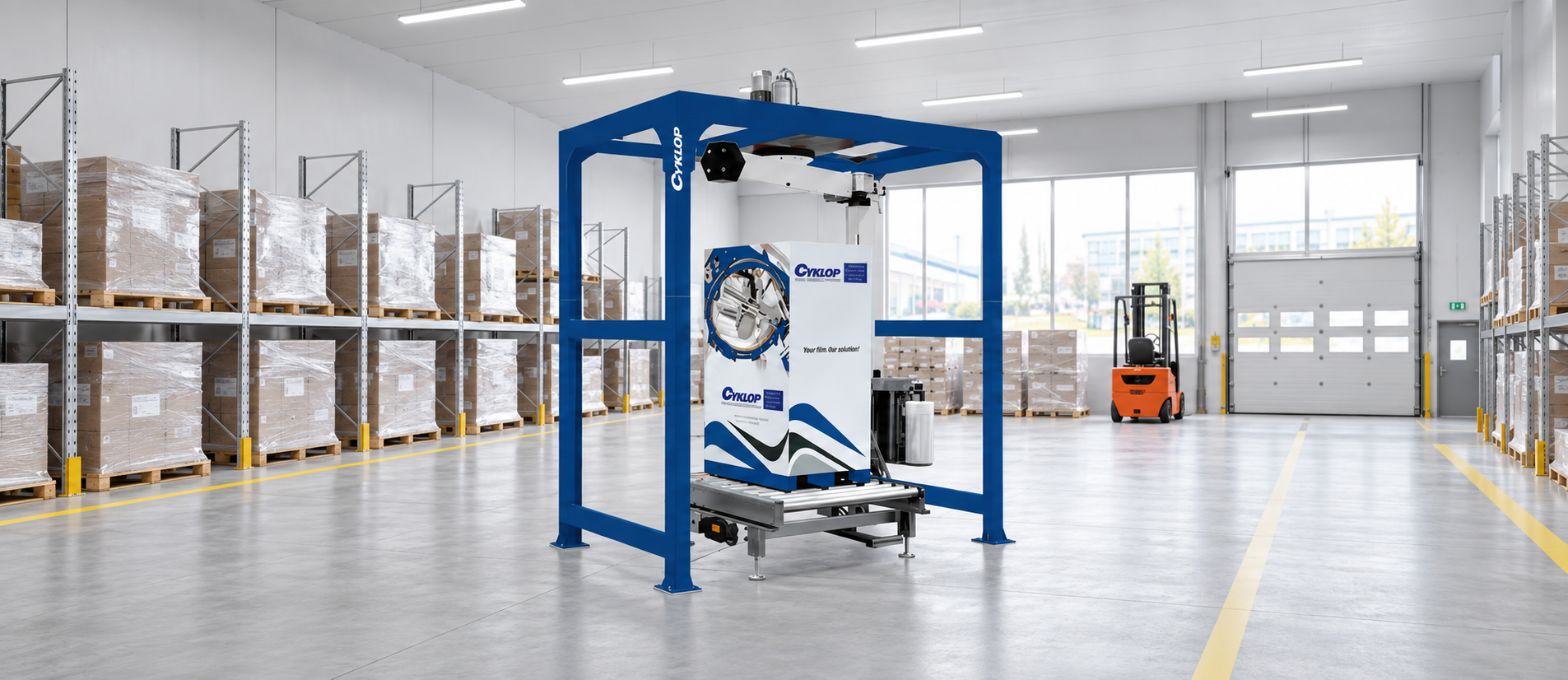

Fully Automatic Arm Wrapper
FULLY AUTOMATIC ARM WRAPPER
The CSA Series is a fully automatic arm wrapping machine designed for efficient pallet wrapping with stretch film. Its rotating arm allows pallets to remain stationary during the wrapping process, making it suitable for unstable and heavy loads.
The CSA Series provides flexible and reliable packaging performance with controlled film handling, improved wrapping stability and efficient pallet packaging for different production requirements.
Technical Features
| Speed |
CSA950: up to 25 rpm CSA970: up to 30 rpm CSA900: up to 35 rpm |
|---|---|
| Min. pallet dimensions (L×W) | 400 × 600 mm |
| Max. pallet dimensions (L×W) | 1120 × 1420 mm (other on request) |
| STD pallet height | 2100 mm |
| Stretch film reel external diameter | 250 mm |
| Stretch film reel weight | 18 kg (other on request) |
| Conveyor height | 500 mm |
| Stretch film reel height | 500 mm |
| Film thickness | 10–35 µm |
| Others | All models can be equipped with top sheet dispenser. |
Machine Characteristics
High-Strength Structure
High-strength shaped structure designed for reliable and stable machine operation.
Interchangeable Components
CSA structure is used for all machine models, with most parts designed to be interchangeable.
Controlled Film Delivery
Stretch film delivery control is available with two motor torque types: TPS1 with 150%–350% pre-stretch and TPS2 with 0–400% pre-stretch.
Contactless Film Cutting
Contactless film cutting system helps effectively increase the service life of wear parts.
Movable Cutting System
Movable film cutting system is suitable for pallets with large dimensional differences.
Energy-Efficient Sealing
Stretch film sealing system can save up to 70% of energy consumption while supporting safety and cost reduction.
Universal Installation
CSA series wrappers can be installed on different types of pallet conveyors without mechanical modifications.
Flexible Pallet Handling
Horizontal gripper movement adapts to different types of pallets, including products that protrude beyond the pallet.
Reduced Installation Footprint
CSA series wrappers have a reduced footprint for convenient installation in different layouts.
