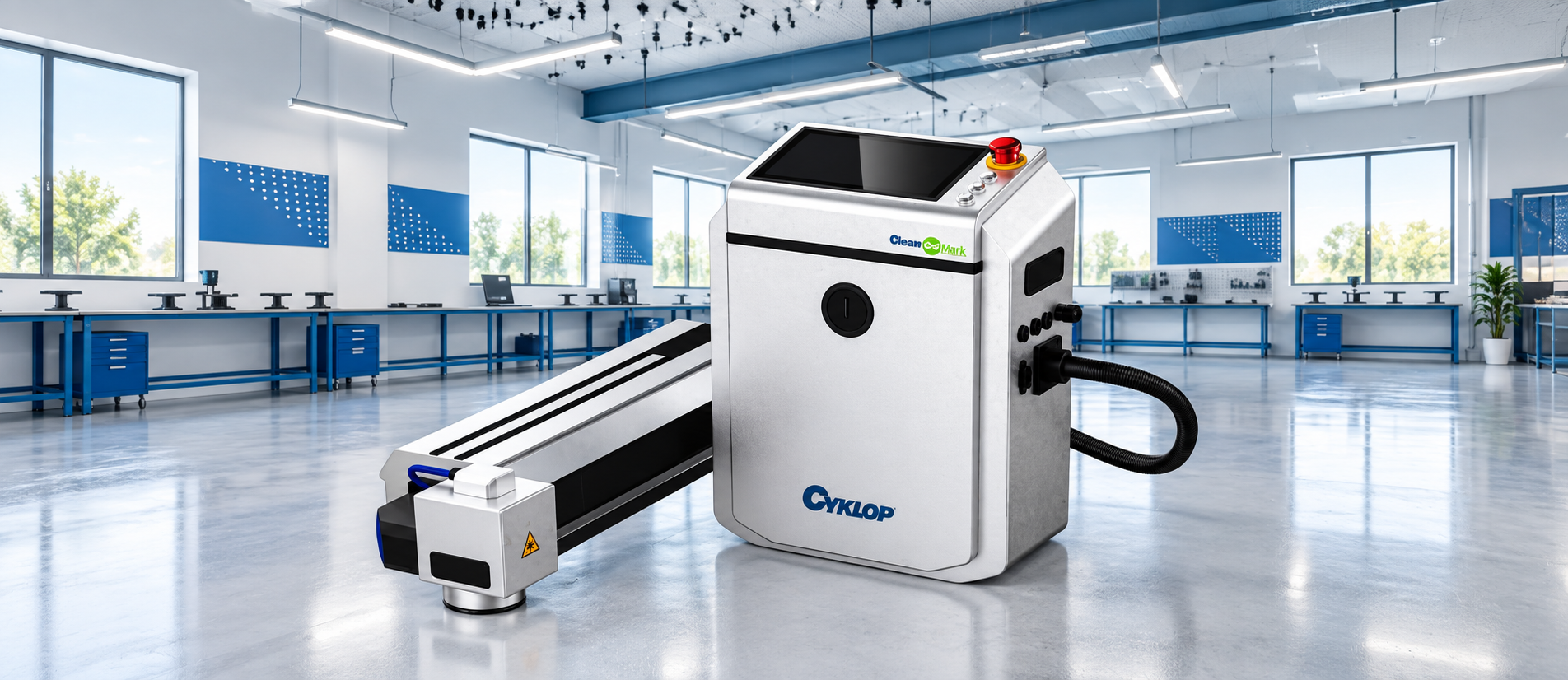

Fiber Laser Marking System CM 800F
FIBER LASER MARKING SYSTEM
The CM 800F series fiber laser marking system is designed to provide high-quality and high-speed printing for various production applications. Its light and agile marking unit supports flexible printing content without restrictions on fonts, coding or graphics.
The system is suitable for applications in auto-parts, electronics, can, cosmetic, pharmaceutical and building material industries, providing an efficient solution for demanding industrial marking requirements.
Designed for High-Speed Marking
The CM 800F combines flexible integration, high-speed marking and precise control for demanding industrial coding applications.
Non-stop
High performance long-life laser source increases uptime significantly
Air-cooled laser source and no wearing parts requires no additional maintenance
Easy to operate
Flexible integrated solution with multiple standard beam transmission options
Highly integrated modular design ensures simple and convenient installation and maintenance
High efficiency
High-speed digital galvanometer system to ensure high speed and accuracy
Smaller spot size and concentrated energy to handle difficult materials and complex marking requirements
Optimized vector calculation logic for more precise and efficient control of lines
No mistake
In-house developed touch screen high-speed laser printer control system
Human-machine interaction, to reducing mis-operations and ensuring correct marking
Multiple high-resolution print field lens options provide accurate and perfect identification

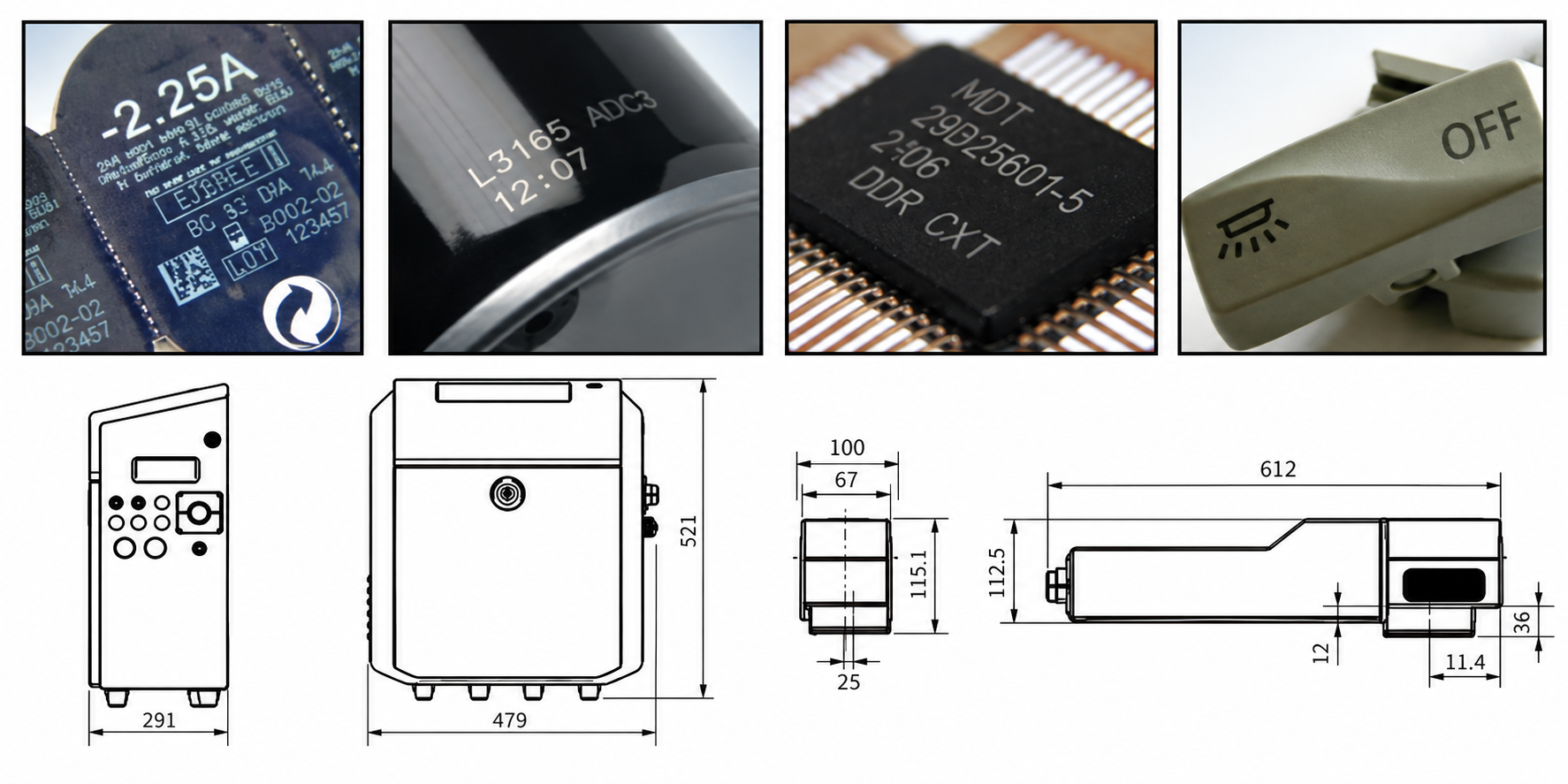

Fiber Laser Marking Samples & Machine Drawing
Technical Specifications
| Marking Speed | Up to 2,000 characters/second |
|---|---|
| Line Speed | Up to 200/min |
| Wave lengths | 1,055-1,070 nm |
| Marking Format | Standard industrial fonts, Bar codes, Q-R code, Data Matrix, Aztec - code, Han-Xin-code, Graphics, Logos, Symbols etc. |
| Laser Tube | Ytterbium (Yb) pulsed fiber laser |
| User Interface | Personalized touch control screen |
| Communication | UDP, TCP/IP and Rs232 |
| Integration | Flexible beam delivery options |
| Electrical Requirement | 110-240 VAC (To be noted when ordering), 50/60 Hz, 1 PH, 0.70 KW |
| Environment | Temperature 5-40°C (41-104°F), Humidity 10%-90%, no condensing |
| Sealing and Safety Standards | Cabinet: IP54 standard, Marking Unit: IP54 standard |
| Weight | Standard unit: approx. 34 kg |
