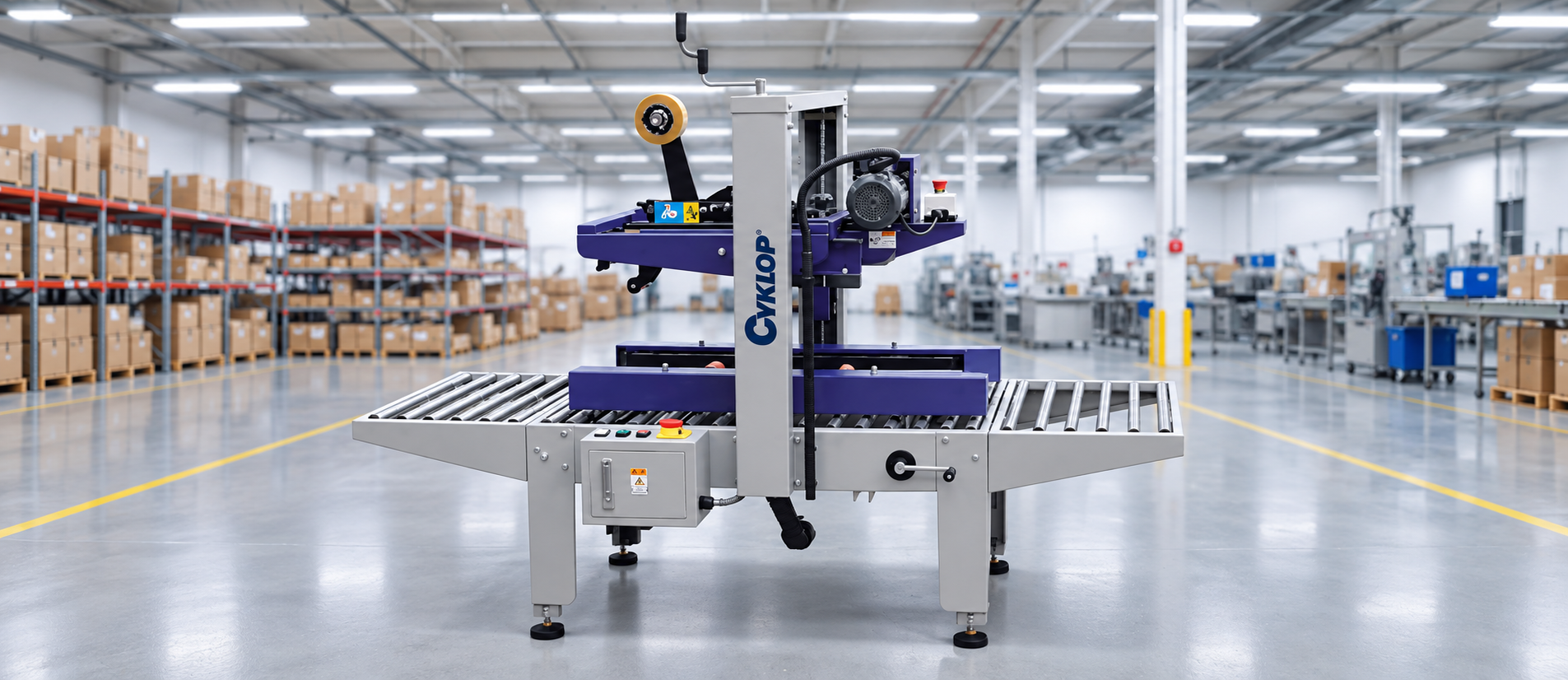

Case Sealer
CASE SEALER
The Case Sealer is designed for efficient and reliable sealing of corrugated cartons in packaging lines. It provides consistent carton sealing performance and helps improve packaging productivity.
Suitable for industrial packaging applications, the machine can be integrated into production and packaging lines to support smooth and continuous carton sealing operations.
Designed for Efficient Performance
Easy to use
Simple operation via switch button or foot pedal
User-friendly PLC + driver board
Ergonomic design
Improved performance
Up to 30 strappings per minute
Adjustable tension forces up to 800 N
Brushless DC motor for long-lasting durability and strapping quality
Flexible & reliable
Compatible with strap widths of 9, 10, 12, or 16 mm (0.6 – 1.0 mm thickness)
For heavy, bulky products
Robust construction
Case Sealer Machine Samples & Technical Drawing
Technical Specifications
| Strapping speed | Max 30 strappings/min |
|---|---|
| Tensioning system | Arm type |
| Working table Height | 820 mm |
| Strap sizes width | 9, 10, 12 or 16 mm |
| Strap thickness | 0.6 - 1.0 mm |
| Strap coil |
Inner dia.: 200 - 210 mm Outer dia.: 400 - 450 mm Width: 170 - 190 mm |
| Control component | PLC+Driver board control |
| Control panel | By switch buttons |
| Power source | 1P, 220-240V, 50Hz, 0.85kW |
